KK4ICE USA flag USA

Login is required for additional detail.

Email: Login required to view

Ham Member Lookups: 3984

Greetings from KK4ICE









East Alabama SKYWARN Net Coordinator

Member of Alabama ARES

Treasure Coasters' Net Control Station

ARRL Volunteer Examiner

Sept. 29, 2014: Update on Ultrasonic RFI locating project. After devising a way to sight the reflector (which is HIGHLY directional and sensitive) I was able to pinpoint the offending device, which is a lightning/surge arrester. More photos highlighting the source can be found at http://www.kk4ice.com.

Sept. 27, 2014 -- First actual use of the ultrasonic system I just put together for hunting down RFI sources on utility poles. Narrowed it down to the top of this pole. Definitely some arcing going on in a connection, insulator, or other hardware at the top of this pole:

The video below was taken during a quick test to see how directional the reflector would be for ultrasonic sound. I was using an empty nasal spray bottle, squeezing it, which produces both faint audible and ultrasonic sound. The receiver (in the brown leather case) takes the ultrasonic sound from the transducer, amplifies it significantly, and down-converts it to sound at frequencies audible to the human ear. Using this re-purposed offset satellite dish actually worked even better than I'd anticipated. You can see near the end of this video clip that moving up/down or left/right of the aperture/view of the dish causes the sound level to drop sharply until and ultimately disappear off-axis:

Reflector/dish with a couple of coats of black paint applied:



KK4ICE TS-520 The BeastRigs in use currently include an Icom IC-7200, Kenwood TS-440S, Kenwood TS-520, and an assortment of 2M, 70cm, 6M, and 220 MHz rigs. My primary antennas are a G5RV along with an 80/40 dipole using a homemade air core balun, a 40-Meter off-center fed dipole, a homemade 2M/440 attic-mounted, dipole, a set of 2-meter Cushcraft Cross-Yagi Beams atop a Rohn-25 tower, and a set of homebrew, full-size, three-element 6-Meter beams.

I thoroughly enjoy DX communications and digital modes. I also enjoy designing and building antennas, most especially wire antennas.

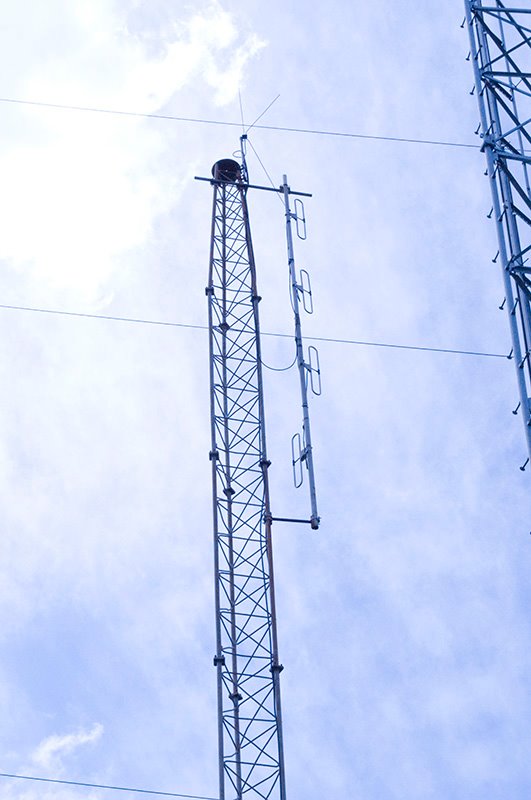

KK4ICE 6-Meter FM Repeater

I am the owner/trustee of the KK4ICE-R 6-Meter Repeater located on Salem Hill in Salem, AL. 53.010 MHz(-), No PL Tone. I recently acquired this repeater in non-working order and did a good deal of maintenance work on it. It was recently put back in service with some installation modifications resulting in better sensitivity and improved audio qualtiy. If you're within range of it, jump on 6-Meters and give it a try if you have 6 Meter FM capability.















This is the view looking North from the tower site. As you can tell, "line of sight" is awesome from the hill.



















Rohn-25 Tower and 2-Meter Beams

With the assistance of KD4BO and WJ4Z, the 35' Rohn-25 tower went up here at my QTH on 12/4/12. The 2-Meter Cushcraft Cross-Yagi Beams are giving me some amazing 2-Meter coverage. I'm working through repeaters all over Alabama and Georgia. It's a huge help when operating the East Alabama SKYWARN Net.

























A Historic, Functional Keepsake

Nearest the camera in this photo is approximately 30' -- including the top section -- of Rohn-45 tower. What's special about it to me is that it was the upper section of the old WJHO-1400 AM radio tower which was taken down by a tornado back around 1980. I cut my teeth in the world of broadcasting by working for them as a DJ while I was in high school.

I will probably put the Rohn-45 up and top it with some HF beams.





















Homebrew 2m/70cm J-Pole

This antenna provides amazing performance and will fit easily in the average attic, which is where I wound up installing mine. It outperforms a Ringo Ranger-II which I had mounted about 35' in the air.

You can build one of these for around $20.

For construction details, visit this link on the KK4ICE Amateur Radio Website.



























AS2259-G/R Military Field Antenna

I picked this little gem up at a local thrift store for $10. It's essentially an NVIS antenna with two wire dipoles in an "X" configuration connected to a copper rod running up through the center of the mast.

I retuned mine for resonance on 40 meters and 10 meters and I'm having quite a bit of fun toying around with it. Information I found online indicates that the military pays something like $1,179 each for these antennas -- a ridiculous price in my opinion, but they're certainly worth way more than $10. If you ever get the chance to grab one, do so. They make great Field Day and emergency antennas.
