KC9WKE - YOUNGSTOWN, OH

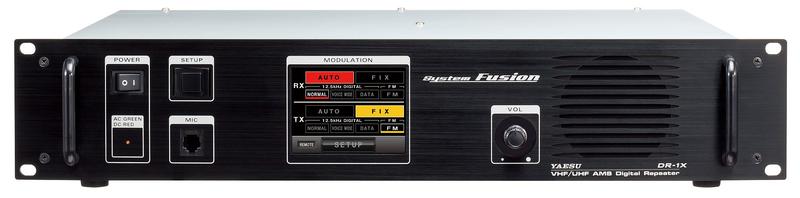

SYSTEM FUSION DR-1X



ANALOG USERS: REMEMBER TO USE BOTH ENCODE AND DECODE DCS 025 TO AVOID HEARING DIGITAL SIGNALS

ANALOG & DIGITAL VOIP SYSTEMS

 THE KC9WKE REPEATER IS CURRENTLY DOWN AND WILL BE RELOCATING TO YOUNGSTOWN OHIO AREA FROM SWANSEA IL WHEN THE REPEATER IS PUT IN SERVICE AGAIN, IT WILL BE LINKED TO ALLSTAR NODES 27915 AND WILL PROVIDE  DTMF ACCESS TO: ALLSTAR, ECHOLINK,  IRLP, YAESU WIRES AND DSTAR VOIP SYSTEMS. THIS PAGE WILL BE UPDATED WITH NEW FREQ. WHEN PLACED BACK ON AIR. UNTIL THEN, THE NODES ARE ON 144.910 SIMPLEX IN SWANSEA, IL. THE MOVE WILL TAKE PLACE IN LATE JULY 2017.

*These systems are for individual use only, do not interlink systems w/o prior approval*



TO CONNECT TO THE FOLLOWING SYSTEMS:


ALLSTAR NODE 27915:
*3 plus ALLSTAR node number connects
*1 plus ALLSTAR node number disconnects or *71 to disconnects all links

ECHOLINK NODE 429456:
*33 plus 6 digit ECHOLINK node number connects
*13 plus 6 digit ECHOLINK number disconnects or *71 to disconnects all links

Allstar REQUIRES Echolink nodes must contain 6 digits. If the Echolink node you want has less than 6 digits, you must pad zeros prior to actual node number.


INCOMMING ECHOLINK CONNECTIONS:
All incomming calls from Echolink are directed to node 28785, if you have instructed someone to connect to the MIDWEST VOIP USERS echolink node 429456 you must connect (link) to allstar node 28791 (use *328785 to connect (link). You then can talk and listen to incomming Echolink calls. Use *71 to disconnect.

Outbound Echolink connections can be made directly from repeater using above process.

IRLP NODE 8996:
*38 plus IRLP Node Number connects
*18 plus IRLP Node Number disconnects or *71 to disconnects all links

INCOMMING IRLP CONNECTIONS:
All incomming calls from IRLP are directed to node 28915, if you have instructed someone to connect to the MIDWEST VOIP USERS IRLP node 8996 you must connect (link) to allstar node 28915 (use *328915 to connect (link). You then can talk and listen to incomming IRLP calls. Use *71 to disconnect.

Outbound IRLP connections can be made directly from repeater using above process.

WIRES X NODE 11017
# Plus User or Room Number Connects
# Plus 99999 Disconnects
# Plus 66666 Status Of Node
You must first disconnect current connection (IF ANY) before connecting to different room or user

BUSY ROOMS:
AMERICA LINK: 21080
UK NET HUB: 27721
ALABAMA LINK: 21568
WORLD WIDE WIRES: 21067

FOR ACTIVE WIRES LIST SEE:





ANALOG DTMF MACROS (favorite shortcuts)

*70 CURRENT ALLSTAR NODE STATUS
*71 DISCONNECTS ALL
*80 FORCE ID
*81 TIME OF DAY
*510= ALLSTAR AUDIO TEST SERVER
*511= ECHOLINK AUDIO TEST SERVER
*512= IRLP AUDIO TEST SERVER
*513= STATUS (WHEN TELEM OFF)
*514= KC9WKE ST LOUIS LINK 144.910
*515= N1DOT TURNER MAINE 2M SIMPLEX LINK
*519   NEWSLINE
*520   *AREC* AMATEUR RADIO EXPIREMENTER'S CORNER
*521   WB0QXW/R 145.210 ST LOUIS
*522   *HI GATE*
*530= Alaska Morning Net irlp9109 as2591 el9191
*531= SOUTHCARS NODE 27404
*532= IRELAND CONFERENCE EL NODE 2605
*533= WAN WIDE AREA NETWORK IN PA W3WAN
*534= WESTERN REFLECTOR 9250 IRLP
*535= EAST COAST REFLECTOR IRLP
*536= WIN SYSTEM NODE  irlp9100 as2560
*501 PARROT ENABLE - *502 PARROT DISABLE


AUDIO TEST SERVERS

*33009999 ECHOLINK
*389999 IRLP
*340894 ALLSTAR




DIGITAL D STAR


The DR-1X repeater has been upgraded with an external UDRC controller. This board is mounted atop a Raspberry Pi II that gives the repeater full access to Dstar. It runs Jonathan's G4KLX software to the IRCDDB network. To use Dstar simply have your Dstar radio set to "DV" mode on the repeater channel. Repeater 1 should be set as kc9wke b and repeater 2 should be set as kc9wke g.  Use the following dtmf commands:

Disconnect = #

Status = 0

Disconnect CCS call routing = A

Reconnect to default connection = **

How to use

The examples below are fairly self explanatory. However on the DCS reflectors, each of the reflectors has up to 26 nodes or groups A -Z.
DTMF can only handle letters A -D, hence once you get to DCS001E the DTMF becomes D105, F becomes D106 etc.


DCS Reflectors

DCS001A = D1A = D101

1D = D1D = D104

DCS005A = D5A = D501

5B = D502

6Q = D617



X Reflectors

XRF 10B = B10B

XRF 21B = B21B

XRF 727 A = B727A

DPlus-Net

REF 001 C = *1C

REF 006 C = *6C

REF 005 A = *5A

A = 1

B = 2

C = 3

D = 4

E = 5

F = 6

G = 7

H = 8

I = 9

J = 10

K = 11

L = 12

M = 13

N = 14

O = 15

P = 16

Q = 17

R = 18

S = 19

T = 20

U = 21

V = 22

W = 23

X = 24

Y = 25

Z = 26

READ ABOUT N.W. DIGITAL RADIOS' NEW INTERFACE (UDRC) TO THE FUSION REPEATER THAT WILL ENCODE/DECODE DSTAR!



EXPERIMENTER'S CORNER NETWORK:

http://w4icy.inerrantenergy.com/arec.html
