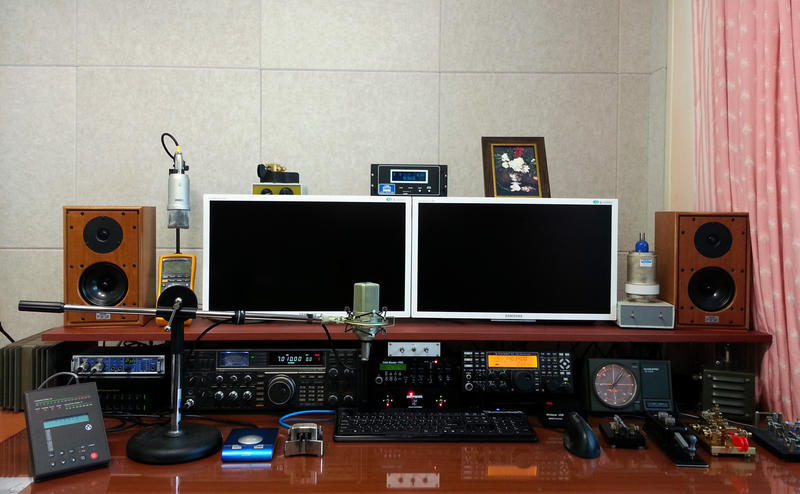

Equipped with Elecraft K3, IC-765 and several kind of keys.
Consists of ACOM 2000A, Expert 1K-FA. Bird 4410 power meter,
homemade coaxial switching metrix and Harris RF-551A preselector are also included.
This desk is placed in the separated space by window from operating desk
to eliminate heat and fan noise of amplifiers from operating desk.
HP 8924C Radio service monitor, TEK 2430A Oscilloscope,
HP 5315A universal counter and AA-200 Antenna analyzer.
Cable Entrance bulkhead
ANT 1 is for 4 element Yagi, ANT 2 for Dipole, ANT 3 for VHF and ANT 4 for spare respectively.
This 4 element triband yagi is mounted on the rooftop of
aprtment building which is shown in the following picture.
Panorama of the Apartment buildings
KT-34A, 4 element triband YAGI and mutiband dipole antenna
are mounted on the rooftop of this 55 meters high building.
South Eastern(South America direction) view from around antenna
Aerial shot around my village
Apartment buildings located far end of this photo is where I live in.
View from my work
This is summer season view from my work toward my house.
The aprtment buildings are seen little bit from beyond a hill.
My favorite keys
Amplidan Straight key
Bug key by I1QOD
