I5JVA Italy flag Italy

Login is required for additional detail.

QSL: ONLY BY THE ABOVE ADDRESS .NO VIA BUREAU

Email: Login required to view

Ham Member Lookups: 11852



2012 Update by Carlo I5jva   WWW.ANTENNA.IT

September 2012, new antennas at I5JVA antenna farm

                                          Please visit  ANTENNA site

I use TS 950 SDX and linear amplifier with one 3cx 1200.

WEB SITE : http://www.qsl.net/i5jva

WWW.ANTENNA.IT

QTH LOCATOR: JN53RW


















See below my antenna systems on 80 and 160 m.








Big map







  You tube video I5JVA

Towers:

# 1 Guyded82 m ( 269 ft )



# 2 Guyded 64 m ( 210 ft )



# 3 Guyded 30 + 16 = 46 m ( 151 ft )





160 m Antennas:

300° - 4 elements delta loop,80 m boom, between tower #1 and 2 at 56 m

120° - 3 elements delta loop,64 m boom, between tower #1 and 2 at 56 m

30° and 210° - 2 elements sloper delta loop , on tower #3 at 46 m

80 m Antennas:

300° and 120°, inverted V wire yagi - 3 over 3 elements - below the scheme . antennas at 80 m and 40 m on tower # 1

30° , 4 elements inverted V yagi , on 30 m tower (#3)

210° , 3 elements inverted V yagi , on 30 m tower (#3)

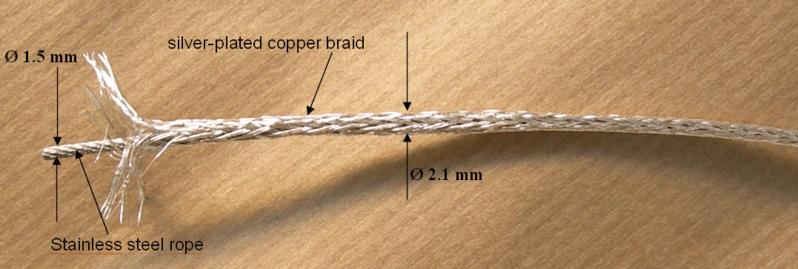

Delta loops and yagi with HFW2.02 ANTENNA WIRE

Wire PDF specification

Manufacturing Company and seller: Giovannini Elettromeccanica www.antenna.it

WiMo ( Germany) seller , web page







HFW2 Antenna Wire Vs. Stranded Copper Antenna Wire, You Tube Video


3.8 MHz 3 + 3 INVERTED V YAGI STACK



160 AND 80 m antenna matrix

UNUN 2.25:1 broad band transformer with stack switching. Both antennas , lower antenna or upper antenna



3.8 MHz passive elements - Reflector and director inductance switching system



3.8 MHz 3 elements inverted V yagi 3D lobe, antenna at 40 m 3.8 MHz 3 elements inverted V yagi lobe, antenna at 40 m

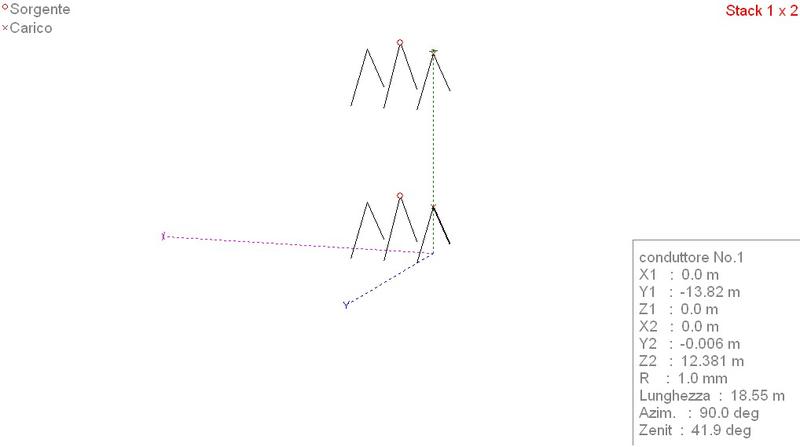

3.8MHz ,3over3elements inverted V stack yagi 3D lobe - Lower antenna at 40m , upper antenna at 80 m 3.8 MHz , 3 over 3elements inverted V stack yagi lobe - Lower antenna at 40m , upper antenna at 80 m








TOWER # 3 - 30 + 16 = 46 m

TOWER # 2 - 64 m
TOWER #1 - 82 m








I5JVA e-mail i5jva@qsl.net

Job: www.antenna.it

I5JVA Carlo , IK5FTW Maria , Matteo and Valentina

Counter from December 15 - 2012


Flag Counter

1588541 Last modified: 2015-01-07 14:54:21, 12848 bytes
