JA3EGE Japan flag Japan

Login is required for additional detail.

QSL: BURO.DIRECT. I LIKE THE PEPER QSL CARD. # NO E-QSL #

Email: Login required to view

Ham Member Lookups: 27432


--I LOVE 50MHz BAND (MAGIC BAND)-
      JT65 50.250MHz 2015:Jan:05 OK QRV looking DX-
.

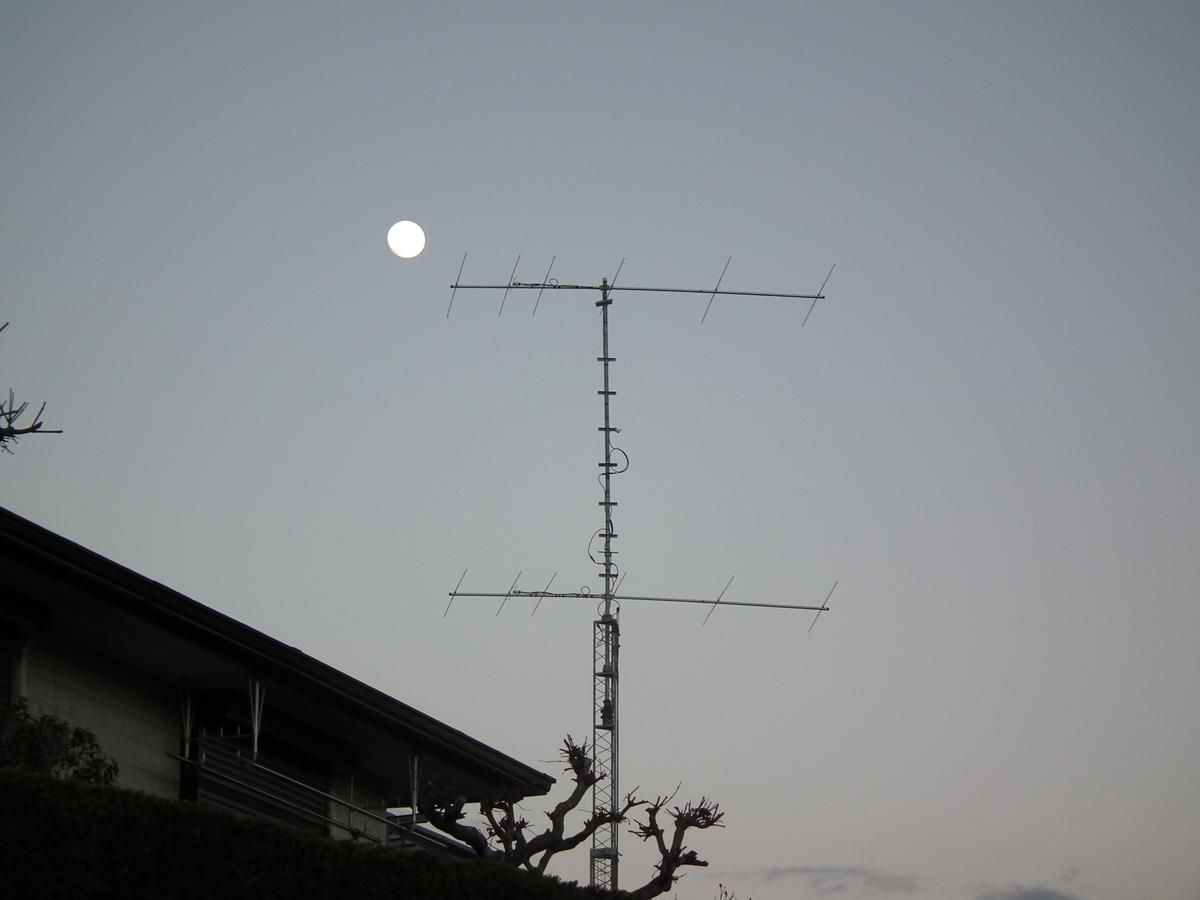

6m Antennas InnoVantennas 7 over 7 elements 9m boom LFA2 at 30mh.
10m band antenna is 5 element homebrew monoband yagi-uda beam at 27mh.
My tower is about 22 m tall of crank up, upper antenna is 30 m and lower one is about 24m.
I live in the hills of about 200 meters above sea level.
:Equipment:ICOM IC-756PRO2 and YAESU FT-dx3000. Add ICOM IC-PW1 KW Amplifier.

                          50MHz WAC AWARD PSE LOOK OF LEFT SIDE OF 50-Mc
      It is a 50MHz band WAC diploma of 1981 issue.
      Please look at the 50Mc of the left side of the triangle sticker.


:Japanese license can be searched in the following on the Homepage!
      do you not put the illegal output power ?
      license of wow 10 watts ? :-(



       .
Rainbow of blue sky and the antennas.
Dusk of the sky and the antenna 1.2GHz and receiving 6m Delta Loop antenna







:MIC PREAMP of DMS-08S (Super Triode Connection type) :


:Tube is PCL-86 (Elektrinski Industrijia ) used.
:Add 30v dc on Plate by DC-DC Converters.(13.8V--> 30.0V)
:Mic preamp gain: 40dB
:Very good SSB voice of Hifi sound !.

:Microphone is using a condenser microphone.
I've been in the phantom power supply of 40 volts.
Mic is Audio-Technica Japan Model:AT2020.

Back of Microphone amplifer:

Direction is left to right  Audio out Microphone connect and Dc +13.8v.



Botom of view


HEADPHONE AMPLIFER FOR TRANSEIVER

HEADPHONE AMPLIFER:

Only one tube of 12BH7A by low volt running 13.8.


               llllllllllllllllllllllllllllllllllllll JT MODE in JAPAN IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII



-- 50.200MHz to 50.299MHz OK JT65 MODE QRV on 2015:JAN:05---

               yes---50.250MHz JT65A and ISCAT-B 50.255MHz---yes
