JY9FC Jordan flag Jordan

Login is required for additional detail.

QSL: E73Y

Email: Login required to view

Page managed by T98A Lookups: 86098



UPDATE, November 2014:

Installed loaded delta loop for top band. Will try to be active mostly on Thursday and Friday nights.

Jovica Todorovic, E78A (ex 6W1SJ, TT8JT, ST2A, ST0RM, 9K2/T94FC, T98A, T94FC).


DX operation from Amman, Jordan - LOC KM71WV
- Active on HF bands + 6 meters, mostly on CW with ocasional SSB and DIGI.

JY9FC Club log is updated on regular basis.


Equipment:
  • Yaesu FTdx-3000D
  • Butternut HF9V multiband vertical (80m - 6m)
  • 80m Loaded Delta Loop
  • 160m Loaded Delta Loop

Buternut HF-9V multiband vertical.



Buternut HF-9V with elevated radials.

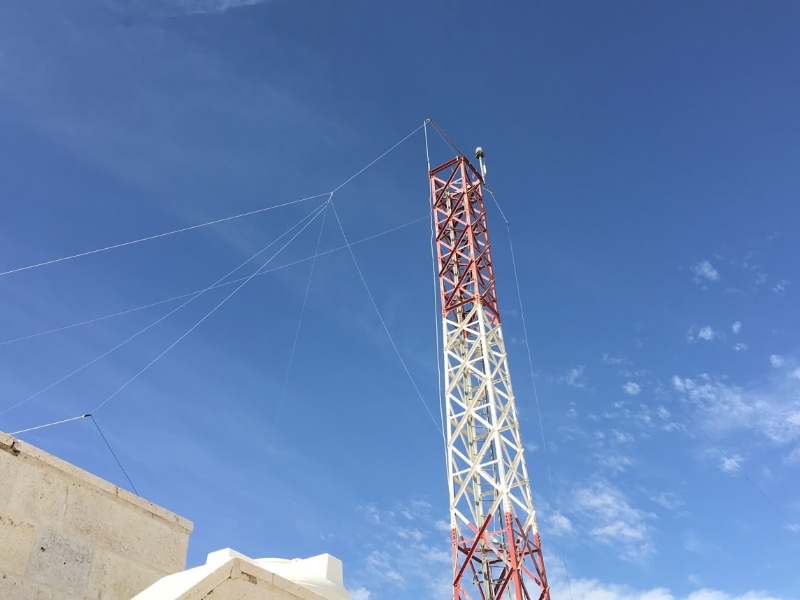

Took me a while to "invent" something efficient for 80 meter band that could fit limited
roof space. Came up with coil loaded equilateral delta loop. Coil is opposite to the feed

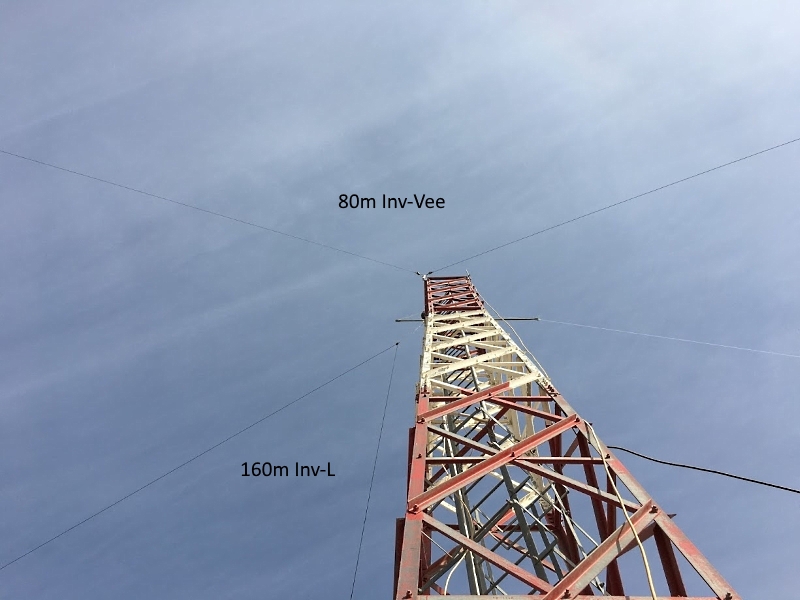

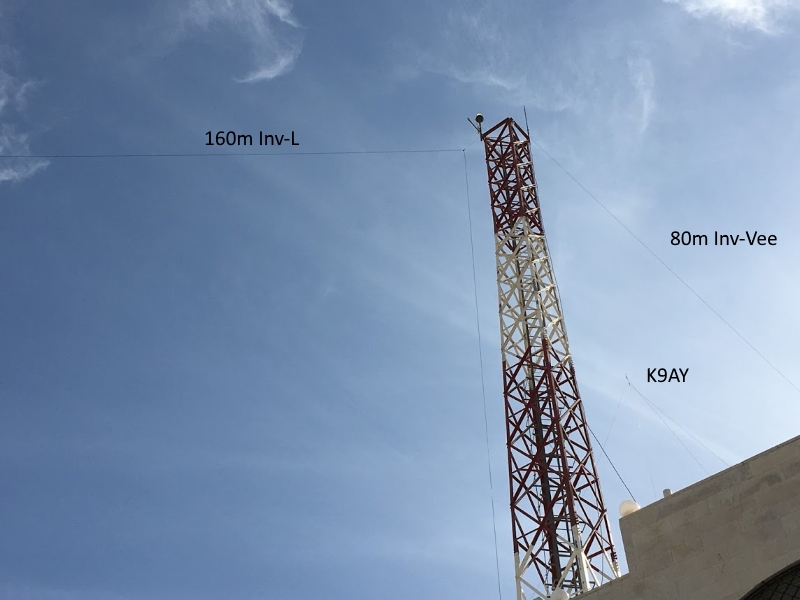

line, and SWR<2 bandwidth is about 50 kHz. Performs better than previous Inv-Vee.

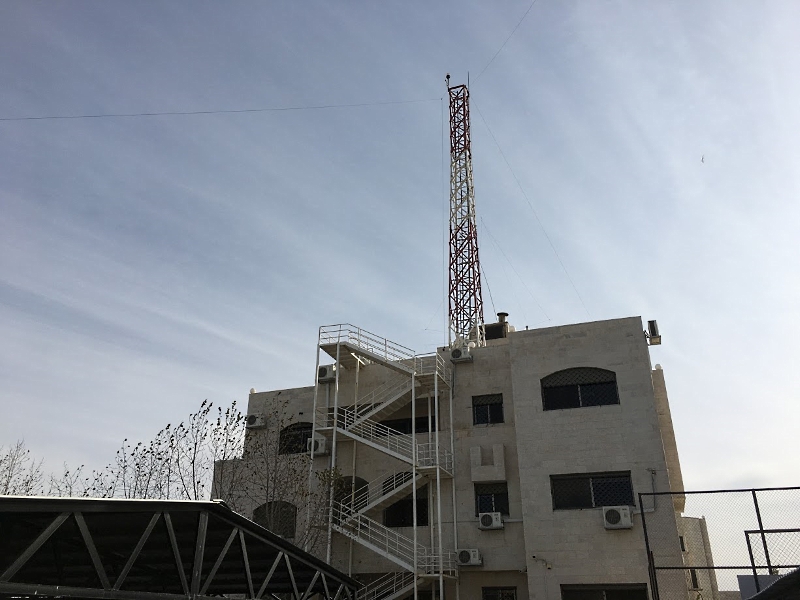

80m delta loop - feeding arrangement. "Contraption" is 9 meters above the roof and
about 24 meters above the ground.

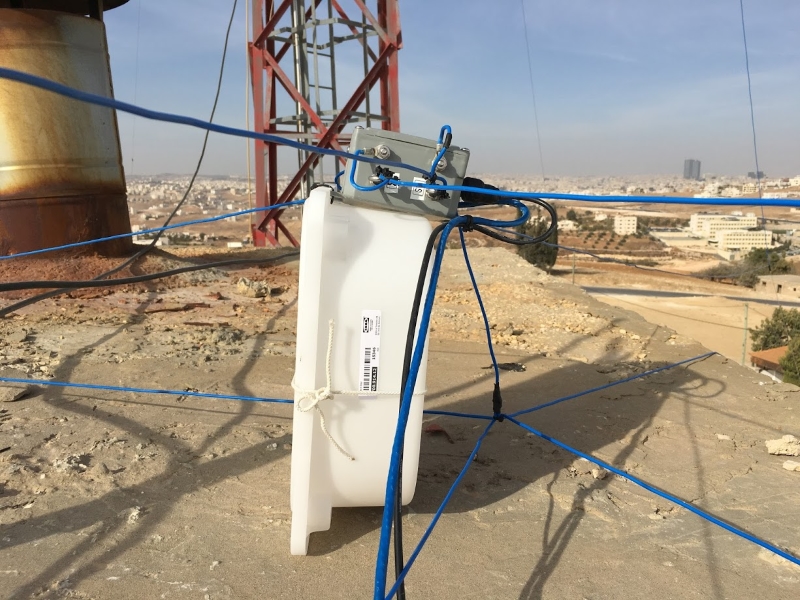

Loading coil (75 uH) for 80m shortened delta loop designed for CW sub-band.
I manually change the coil for 75m (approx.48 uH).



6 meter wire Yagi built in summer 2014. Broom sticks fetched all the way to USA / JA.
