I have just built a new wire antenna for 30m which is based on the Gain-Master design (it is not a copy, it is only based on the same technical idea). Please see the link below. The antenna is a test version for which I have got design help from Marko OH5TM. It hangs down from a guy wire which is attached between my tower and a tree. I will add more information on this page when I have pictures and some additional material ready.

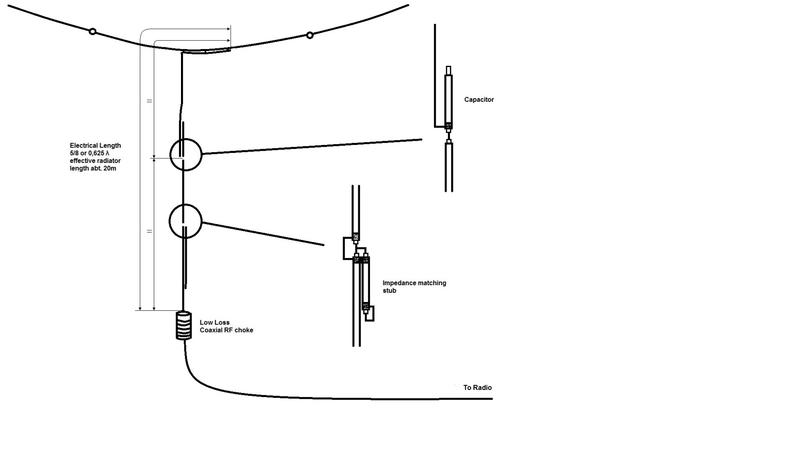

The world´s first 5/8 Gain Dipole in use on 30m

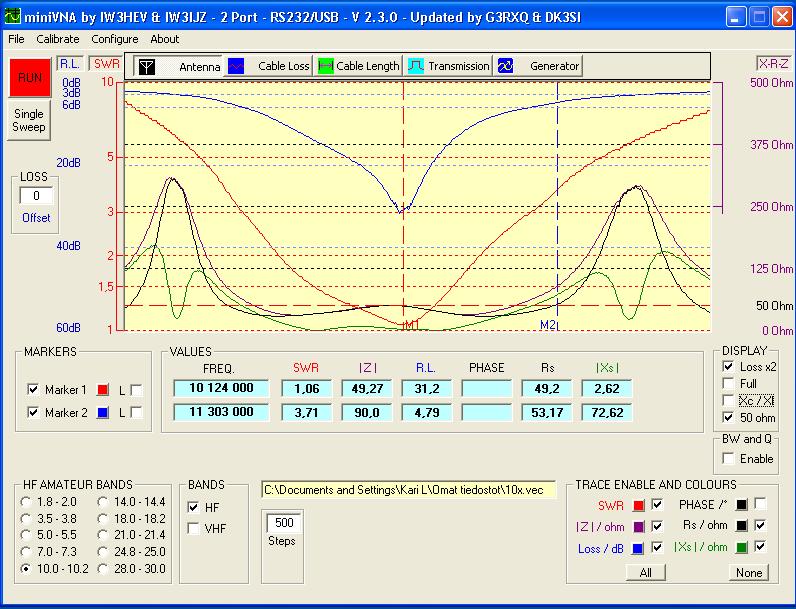

New antenna´s measurement results
Working achievements with 100 watts;
W1-W0, VE, ZS, JA, UA9, V51, KP4, YV, PY, FG, FO0f, 3D2f, HP, CP, FR5r, JY, YN, E51sc, FK, ZD8, CN, XR0y, TX5a, HK0sa, XR0z, J88, PJ7, ZL, KH0, CN, VU2, 9M8, A9, 3B8, etc.
And also with abt. 500 watts;
9X, K9W (new one), FH, T33, FJ, S2, Z81 (new one), XZ1, VU7, VP5, J3, FS, TU, FT5Z (new one),
Thanks for yor interest!
Many thanks to all county hunter friends that my dream has been realized CQ USA-CA #1221 and USA-CW #127! My new goal is working all counties on 20m CW "single band and mobile QSO". I want only 8 counties. If you drive a car there so sent me e-mail so trying made QSO or sked. Thank you!
CA Almeda, Merced, San Benito and Sierra
73, cu Henry OH3JF
cell +358 40 845 2773
I have also new special call OG3077F until 3.4.2017, see you on the Air!
