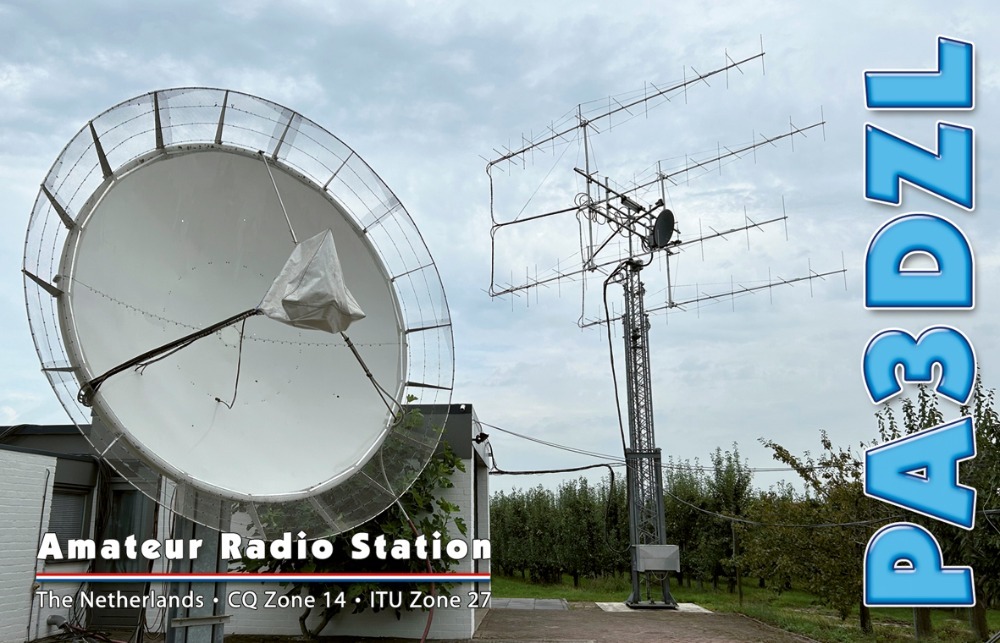

  QSL image for PA3DZL

PA3DZL Netherlands flag Netherlands

Login is required for additional detail.


[+] Mailing label


[-]

Lookups:   4945 Ham Member

QSL: DIRECT OR VIA BURO

Website: http://www.qsl.net/pa3dzl/

On 432 Mhz I'm QRV: Tropo, Aurora, MS and EME

432 Mhz: 4 x 38 el. M2 13WL yagis, HA8ET EXTRA-70 432 Mhz Contest Preamplifier with ATF53189 NF < 0.4dB and PA with GS23b. AlfaSpid rotators for AZ + EL and Orbitron automatic tracking system. Box in the middle of the H-frame with: Preamp, HF400 coaxrelais and Powersplitter. The stacking cables are each 6m 1/2" Cellflex coax. Sunnoise is abt. 9dB SFU >80

Return Loss (RL) of the 4 x 38 el. M2 13WL yagis = 30.17dB

Screenshot 70cm echoes with Dgrd - 2.7 dB:

Screenshot 70cm echoes with Dgrd - 1.0 dB:

QRV 1296, 2320, 3400, 5760 and 10368Mhz Moonbounce EME Rig:

Under construction 144EME

1296 Mhz: 3.7m dish f/d 0.4, VE4MA feed, G4DDK preamp <0.3dB NF and SSPA with 8 times XRF286S watercooled.

23 cm VE4MA feed with built in polarizer

Screenshot 23cm echoes with Dgrd - 2.2 dB:

2320 Mhz: 3.7m dish f/d 0.4, VE4MA feed, G4DDK preamp <0.4dB NF and SSPA.TX: 2320 Mhz / RX: 2284 - 2350 Mhz / RX: 2368 - 2452 Mhz

13cm VE4MA feed with built in polarizer

Screenshot 13cm echoes with Dgrd - 2.4 dB: PA with 3 x MRF5P21180

Screenshot 13cm echoes with Dgrd - 2.4 dB: PA with 6 x MRF5P21180 * NEW PA *

3400 Mhz: 3.7m dish f/d 0.4, RA3AQ feed, DB6NT preamp 0.5dB NF and SSPA 150W@ feed

RA3AQ Feeds for 3400 and 5760 Mhz EME

3400 Mhz RA3AQ feed in dish. First EME activity on the 29th of February 2012. 1st QSO with Peter, G3LTF.

First echoes with 9W at the feed.

Screenshot 9cm echoes with abt. 50W @ feed and Dgrd - 1.2 dB:

5760 Mhz: 3.7m dish f/d 0.4, CT1DMK/LX1DB feed by PA7JB, DB6NT preamp 0.6dB NF and SSPA > 100W@ feed

5760 Mhz RA3AQ feed in dish. First EME activity on the 25th of March 2012. 1st QSO with Philippe, F2TU.

Screenshot 6cm echoes with 18W @ feed with Dgrd - 2.1 dB:

Screenshot 6cm echoes with NEW PA with Dgrd - 2.4 dB: You see a lot of libration fading

10368 Mhz : 3.7m dish f/d 0.4, Linear feed by PA7JB, DB6NT WG-Preamp 0.7dB and SSPA 3W output @ feed.

.

OE5JFL G2 Antenna Controller + MAB25 12 Bit encoders

Putting stainless steel mesh 5 x 5 mm on one of the 8 sections

Photo of 5 sections. All 8 sections are finished now.

On 02-09-2011 we have put up the new 3.7m dish

EME on 3400 and 5760 Mhz

RA3AQ Feeds for 3400 and 5760 Mhz EME

Under construction: Terrestrial station for 23, 13, 9 and 6cm with 95cm dish and 4 band ring dish feed (planning to be QRV summer 2014)

Terrestrial station for 1296, 2320, 3400 and 5760 Mhz with 95cm dish f/d 0.5 and 4 band ring dish feed (RF Hamdesign)

4 band ring dish feed by RF Hamdesign.

95cm dish f/d 0.5 for 1296, 2320, 3400 and 5760 Mhz4 band ring dish feed with

3400 and 5760 Mhz DB6NT Transverters, will be used for both EME and Terrestrial.

IF 28 & 144 Mhz Transverter Switch Unit for 1296, 2320, 3400, 5760 and 10368 Mhz

  • QRV on 14, 21, 28 and 50Mhz with dipole indoor !!
  • No antenna 144 Mhz up at this moment.

My Grid loc. is: JO21hm

Old EME and Terrestrial antenna, not in use anymore:

144 Mhz Array : 6 x 17el. 3.6L Yagis: Gain > 20dBd used from 29-03-1991 to 26-01-1992

432 Mhz Array : 8 x 24el. 6.6L Yagis: Gain > 23dBd used from12-09-1987 to 07-06-1992

Had to take the antennas down for our new house !!

1296 Mhz EME from Radio Observatory Simon Stevin QTH: Hoeven

  • 7.5 meter dish with VE4MA/W2IMU feed, 250W output from 2 x 2C39BA watercooled, Preamp MGF1302.
  • The first QSO was made on 03-02-1990 at 20.23 UTC with HB9SV 559/449
  • The last QSO was made on 14-01-1995 at 22.05 UTC with GW3XYW 449/449
  • We made 161 QSO's with 65 different stations off the moon on 1296 Mhz

1296Mhz QRPP EME !!! with 1 x 23el. F9FT Yagi 14� dBd gain.

  • On 03-05-1998 at 18.25 UTC I worked TM8EME with 529/529 signals !!
  • My rig only 1 x 23 el. F9FT yagi, gain 14� dBd, 150W @ ant. and MGF1302 preamp. See Photo
  • The 23 el. F9FT yagi was mounted on a small table with a fixed elevation of 53� deg. You can also see the relaisbox with preamp under the table. The PA was in my shack.

i r i s :-)
