I was licensed in 1990. My first callsign was DH5IAD at first, after a half year DL3IAS.
My main intrests are:
- Weak signals modes on VHF/UHF/SHF
- Contesting on VHF/UHF/SHF
- Equipment homebrewing
- CW QRP opration on shortwave (only from time to time)
I am member of the local DARC radio club Schifferstadt (DOK K38)
and the 2 m contest group DR2X (Locator JO40QL).
My current set-up:
Main transceivers
Elecraft K3 or K3s
Shortwave
KELEMEN Wire Groundplane for 40m , 20m, 15m, and 10m.
100 Watt
6m (50 MHz)
HB9CV 2 element antenna by Anjo
25 Watt
2m (144 MHz)
TR144H+40 transverter by DB6NT (10m IF)
30 Watt
Feedline Ecoflex10 18 m long
7 element yagi WY207 by WIMO (DK7ZB Design)
70cm (432 MHz)
Homemade transverter DJ8ES Design
15 Watt Mitsubishi M57716 Hybrid PA
Feedline Ecoflex10 18 m long
18 element yagi WY7018 by WIMO
23cm (1296 MHz)
Homemade intermediate transverter from 10m IF to 2m
2m/23cm Tranverter by DB6NT
100 Watt LDMOS-FET PA by DB6NT
Feedline H2000Flex 10 m long
1.5m parabolic dish (f/D 0,65) with LX1DU broadband horn for 23cm, 13cm and 9cm
13cm (2320 MHz)
Homemade intermediate transverter from 10m IF to 2m
2m/13cm Tranverter by DB6NT
15 Watt driver PA by DL2AM
75 Watt final LDMOS-FET PA with MRF21120
Feedline H2000Flex 10 m long
1.5m parabolic dish (f/D 0,65) with LX1DU broadband horn for 23cm, 13cm and 9cm
9cm (3400 MHz)
Homemade intermediate transverter from 10m IF to 2m
2m/9cm Tranverter by DB6NT
40 Watt Toschiba PA UM2683A
Feedline H2000Flex 10 m long
1.5m parabolic dish (f/D 0,65) with LX1DU broadband horn for 23cm, 13cm and 9cm
6cm (5760 MHz)
TR144H+40 transverter by DB6NT (10m IF) as intermediate transverter
2m/6cm Tranverter by DB6NT
8 Watt PA by DL2AM
Feedline H2000Flex 120 cm long
65 offset parabolic dish by Technisat (Satman 650) with a coffee can feed horn
3cm (10368 MHz)
TR144H+40 transverter by DB6NT (10m IF) as intermediate transverter
2m/3cm Tranverter by DB6NT
10 Watt PA by DL2AM
Feedline H2000Flex 60 cm long
65 offset parabolic dish by Technisat (Satman 650) with SQG Feed by OZ8AFC
Additional equipment:
Elecraft KX3
Elecraft KX2
ICOM IC202
ICOM IC402
2 x Homemade 2 m SSB/CW QRP transceiver "Hohentwiel"
Czech 2 meter CW/SSB QRP transceiver R2-CW
20 m QRP CW Transceiver "1Watter" by Kits and Parts
20 m QRP CW Transceiver "Rockmite"
2m QRP CW Transceiver DJ8ES Design
Here some pictures:
Antennas for 6m, 2m, 70cm, 5.7 GHz and 10 GHz on a 10 m Hummel Tower Midi

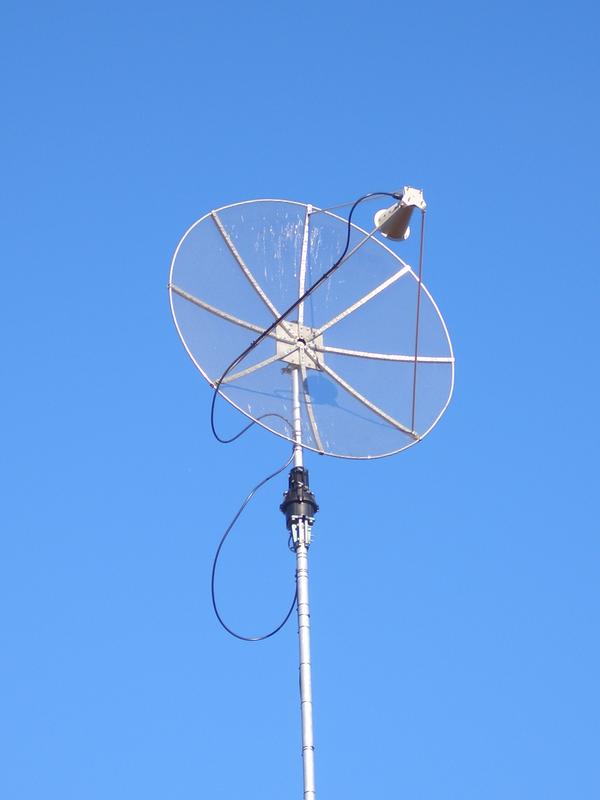

1.5 m parabolic dish for 23cm/13cm/9cm/6cm
Transverterbox for 2 m and 70cm

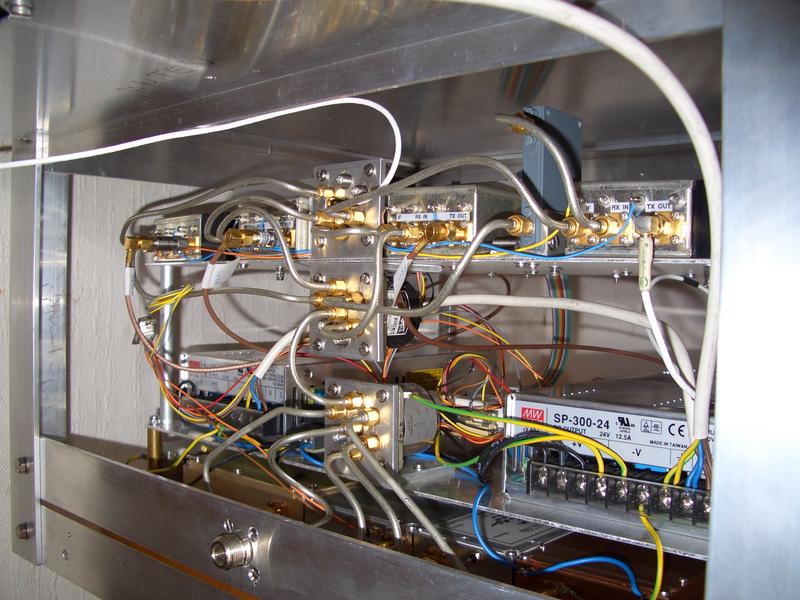

Inside the 3 band micowave transverter for 23cm, 13cm and 9cm

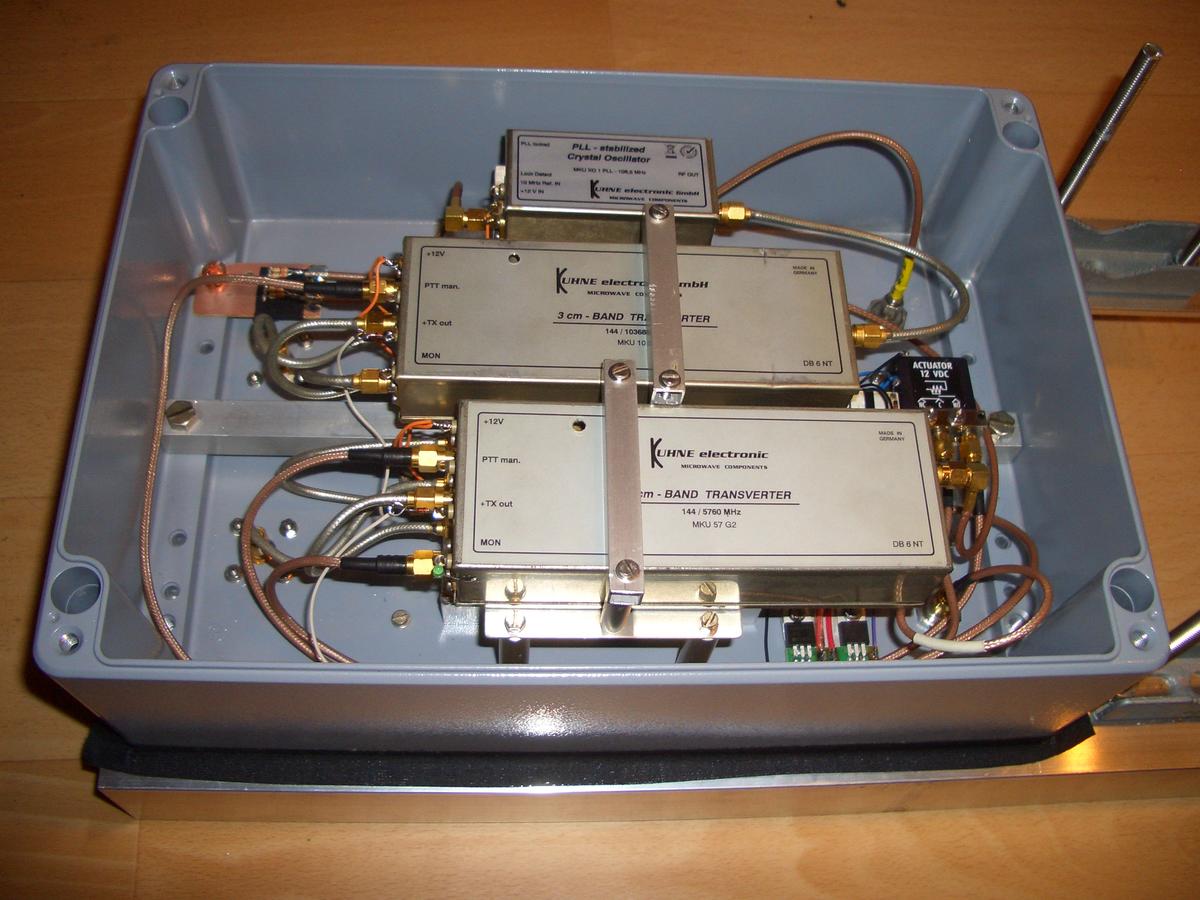

Inside the 2 band micowave transverter for 6cm and 3cm

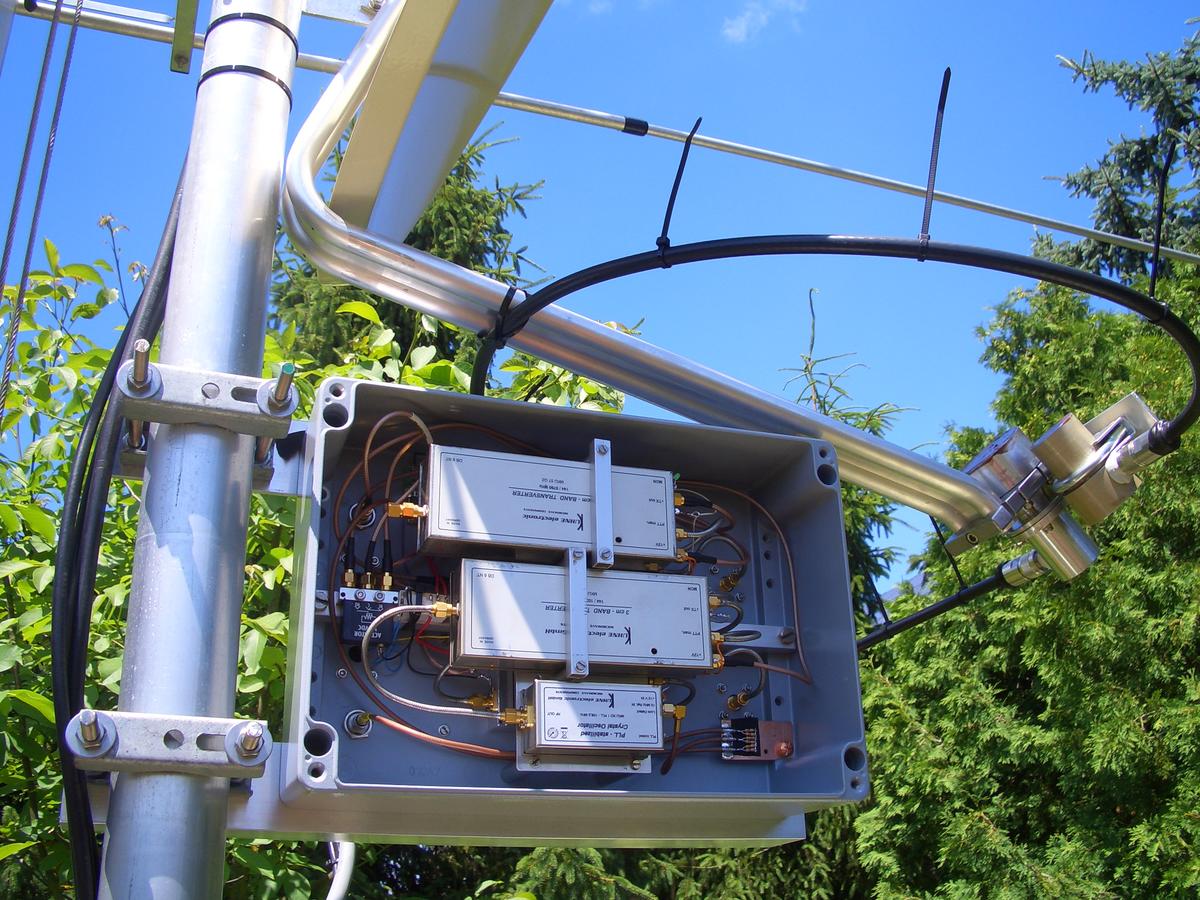

Close view of the antenna system for 6cm/3cm

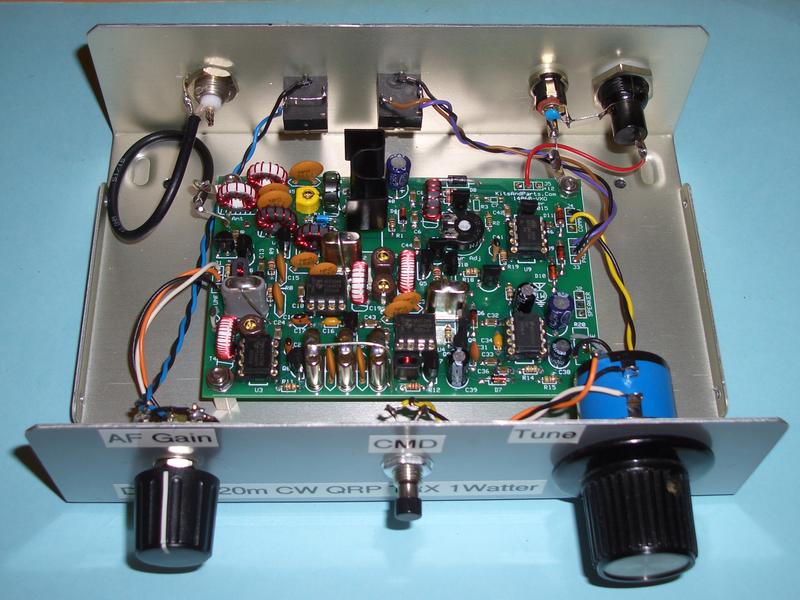

20m CW QRP Transceiver "1Watter"
KELEMEN Wire Groundplane for 40m , 20m, 15m, and 10m.
