My private Amateur Radio Homepage: http://www.qth.at/oe3dsb (only german)
My Online-Log: http://www.hamoffice.de/myLog/OE3DSB

Member of
five nine DX Hunter Group



---

I made my amateur radio license in November 1994. The license for shortwave I have since 2004, but I'm QRV only since 2009.
I like DX hunting on HF and I work mainly tropo and sporadic on VHF, also operating via satellite.

Station 1: (since October 2013)

HF/50 MHz:

• Transceiver:
  Flex 3000 + Expert 1K-FA
• Antennas:
  - Ultrabeam UB20-MX
  - 5el. Yagi for 50 MHz
  - Kelemen wire dipol for 30m/40m/80m band

Pictures:

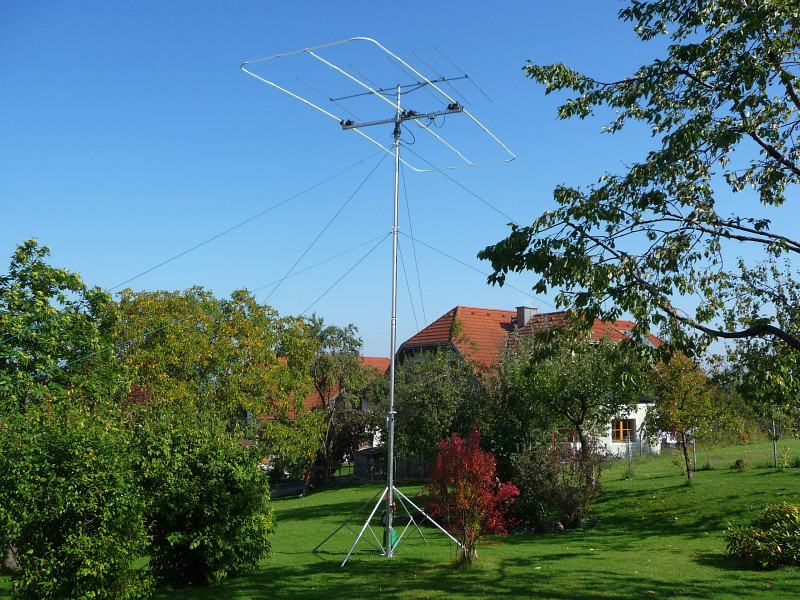

Ultrabeam UB20-MX, 5el. Yagi for 50 MHz - Height above ground is 10m (33ft)

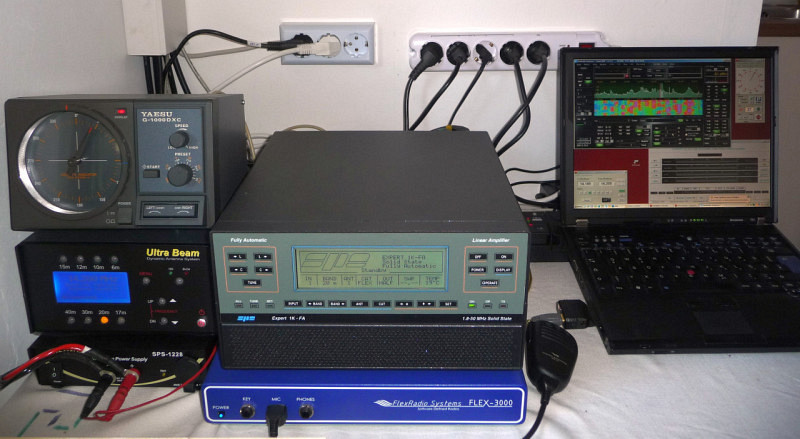

Flex-3000 with Expert 1K, Rotator and Ultrabeam-Controller

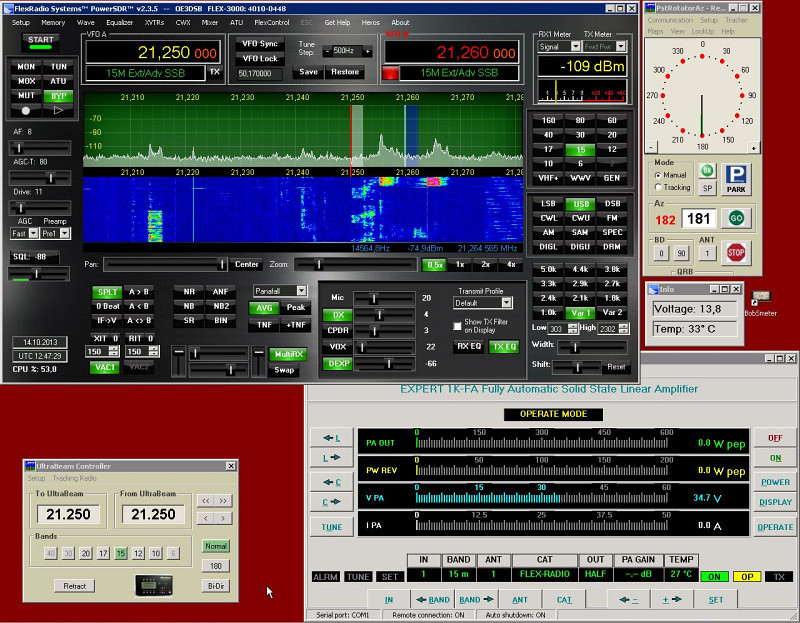

Screen from FlexRadio and the Control-Programs

---

Station 2:

HF/50 MHz:

• Transceiver:
  Icom IC-7600
• Antennas:
  - short vertical dipol "Sigma-5 from Force 12" for 14-30 MHz
  - G5RV for 7-30 MHz, mainly used for 40m (indoor)
  - folded dipol for 80m (indoor)
  - 3el. Yagi, homemade - DK7ZB design for 50 MHz (indoor)



144/430 MHz:

• Transceiver:
  Icom IC-9100
• Antennas:
  - 2m 5el. Yagi (with preamplifier) horizontal, homemade - DK7ZB design - also for satellite
  - 70cm 10el. Yagi (with preamplifier) horizontal, homemade - DK7ZB design - also for satellite
  - 2m/70cm 3el. Yagi vertical, 2m/70cm Groundplane for repeater operating

Specially for satellite:

No elevationon my antennas!
Automatic frequency control for up- and downlink with the programm HalloSat from
DB3DH and automatic postion correction for antennas with the HalloRotor interface.



Pictures:

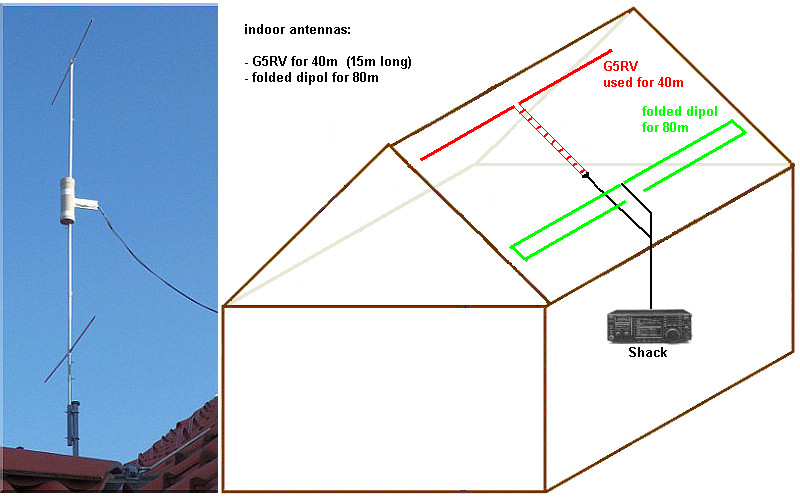

- Vertical dipol for 14-30 MHz (only 3,5m long) - Height above ground is 13m (43ft)
- Indoor antennas for 40m and 80m band

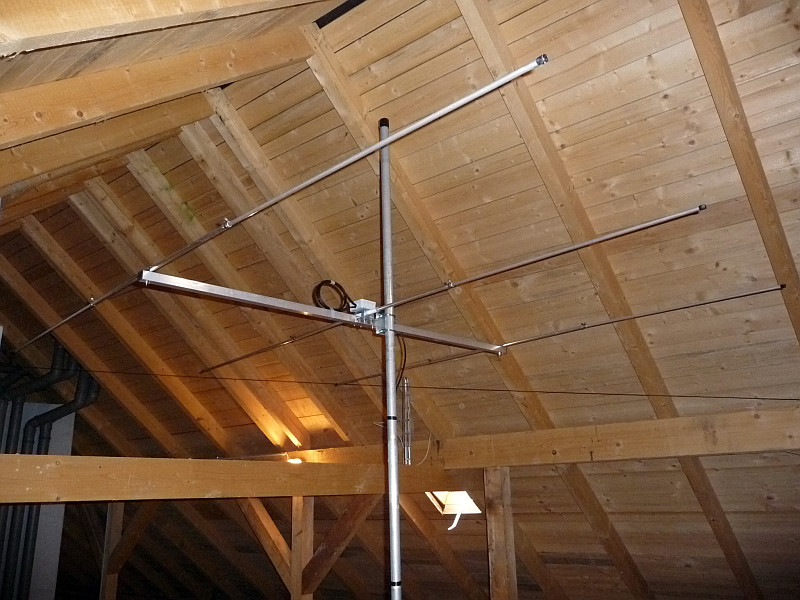

6m Yagi, rotatable (indoor)

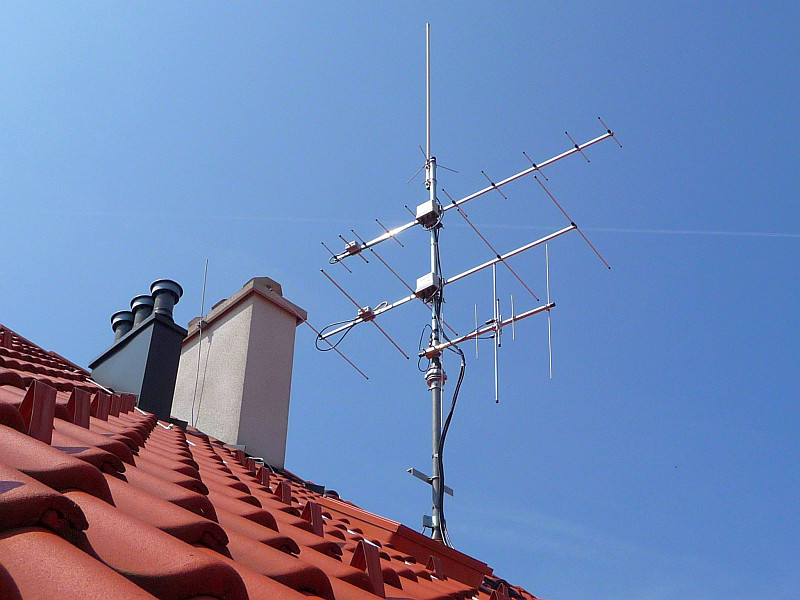

2m/70cm Yagi, rotatable - also for satellite - Height above ground is 20m (66ft)

---
