RI1F Franz Josef Land flag Franz Josef Land

Login is required for additional detail.

QSL: Only Request ClubLog OQRS

Email: Login required to view

Page managed by UA9KDF Lookups: 120785



Thanks for donation:

JA6FIO W1TC G0ANH OE3WWB HA3HP JF6XQJ JA7BWT JH4DYP JA7MGP JP1KOA DS4DRE WB2YQH AC2G JE7JIS RA9CMO UA0FO N3QQ IT9DAA DL5EBE K5MT JA7FLG RA3TAR N5UR R9OK 4Х4-2238 JA1BPA UA0KCX PT7WA KD1CT W2HRO ZS4TX G4BWP JA1BK SM6CVX UA3EDQ JA9IFF/JE1VDN HB9Q JA5EEU DK3WG DL1KDA VE1KG K5QE UA9KB F4FET DJ3AA I4EAT F4GYM DL4FCS UA4CC SP8NR K8YSE JN6RZM JA1EY JA5IU JA1SKE UA9LBQ JA9GPG VK7BC OE3SGA JE3GRQ JG1UKW JH0BBE JA2AYP JN3SAC AB6QM JA1QVR UA3PTW NK1K OE6IMD DF2ZC N8HM DK5EW JO1CRA UA1ZFG JI3DST UT5DL DK4TG IK1UWL OE3WWB NW7M 4Z5TA RA0ZD RA6AR





DXpedition Position Reports

OUR CORPORATE SPONSORS







Viktoriya island:

Geographical coordinates:
 80° 9'49.38"N
 36°44'13.26"E

--------------------------------------------

IOTA EU-190 – new one!
DXCC – FJL (EU)
RRA RR-05-03
DAT-QTH 2AR
RDA AR-26
Zone: ITU 75, CQ 40

QTH LOC: KR80JD

Click to shown enlarge
Our licensee

The passes for the visit of the border area have been granted by FSB of Russia.

Click to shown our photos


Last Visitors

Worldwide Visitors
free counters

U.S.A. Visitors
free counters

Canadian Visitors
free counters

Solar Data



ОСТРОВ ВИКТОРИЯ

     Остров Виктория – необитаемый арктический остров в Баренцевом море, расположенный между архипелагами Земля Франца Иосифа и Шпицберген. Остров Виктория находится на расстоянии около 60 км к востоку от норвежского острова Белый и примерно в 160 км к западу от Мыса Мэри Хэмсуорт на Земле Александры (ЗФИ), координаты острова – 80°05-12’N/ 36°30’- 37°10’E.  Административно о.Виктория входит в состав Приморского района Архангельской области РФ и является самой северо-западной российской территорией. Длина острова около 5 км, ширина 2,5 км. Остров Виктория – один из “островов-ледяных шапок”, большую часть его территории занимает ледниковый купол высотой до 150м.

Остров был открыт 20 июля 1898 года норвежскими капитанами Й. Нильсеном (Johannes Nilsen) и Л. Б. Себулонсеном (Ludvig Bernard Sebulonsen). На следующий день остров был замечен П. В. Нильсеном, капитаном паровой  яхты «Виктория», и назван в честь судна, чьим владельцем являлся британский путешественник Арнольд Пайк. Поскольку остров лежал вне границ полярных владений Норвегии, закреплённых договором о Шпицбергене 1920 года, он считался ничейной землёй,  пока СССР не заявил свои права на него и на Землю Франца Иосифа Постановлением Президиума ЦИК СССР от 15 апреля 1926 года, официально установившим границы полярных владений СССР. В сентябре 1932 года, после 6-летнего территориального спора с Норвегией, остров был признан территорией СССР и включен в состав РСФСР. C 1 ноября 1959 года на острове действовала полярная станция «Остров Виктория». Её обслуживали несколько сотрудников. 1 апреля 1994 года станция была законсервирована. С 1985г. до начала 90-х гг. на острове размещалась радиолокационная станция войск противовоздушной обороны. На острове имеются лежбища моржей. Обитают белый медведь, из птиц - белая чайка. Планировалось, что остров войдёт в состав национального парка «Русская Арктика” (ЗФИ), но в итоге включён не был.

Географически остров Виктория не входит в состав Архипелага Земля Франца Иосифа, но в радиолюбительском аспекте по программе DXCC о.Виктория относится к “стране” (entity) – FRANZ JOSEF LAND (FJL). В 1985-1990гг. с острова был активен UA1O/UA0BCA, который в 1991-1994гг. использовал позывной 4K2BCA. В последние месяцы работы станции использовался позывной R1FJV. В апреле 1994 года полярная станция “Остров Виктория” была закрыта, а сотрудники эвакуированы на ЗФИ. С тех пор остров Виктория сохраняет радиомолчание в эфире.



Первый интерес к острову Виктория как отдельному острову для программы IOTA относится к концу 1980-х. Тогда формировался новый расширенный список российских островов для IOTA, при котором бассейновый принцип отнесения островов к морям расширялся в зависимости от территориально-административной принадлежности островов к российским регионам. Несмотря на довольно значительную общую площадь острова (около 10,8 кв.км) на многих популярных картах остров не отображался. На различных картах, где остров был обозначен, расстояние до ближайшей российской земли (мыс Мэри Хэмсуорт на о.Земля Александры в арх. Земля Франца Иосифа) сильно разнилось и не было точным. Анализ морских карт не позволял однозначно убедиться, что удаление от острова Виктория от другого острова составляет не менее 100 статутных миль, что составляет  160 км. Даже в официальном ответе Главного Управления Навигации и Океанографии значилось два разных варианта расчета – в прямоугольных и сферических координатах получались разные значения. Если в одной системе географических координат расстояние указывалось свыше 160 км, то в другой составляло около 159 км, что не позволяло выделить Викторию в отдельный удаленный остров по правилам IOTA. Не хватало буквально нескольких сотен метров. Это были длительные и тщательные исследования, проведенные G3KMA и UA9OBA.

Только в 2014 году, когда правила IOTA были изменены и установлено минимальное расстояние в 150 км (пункт E5.3), по заявке Russian Robinson Club в мировой список групп островов были добавлены 2 новых группы: в Азиатской части - AS-203 (Shelikhova Bay Group), а в Европейской части – EU-190 (Viktoriya Island). Таким образом, сейчас остров Виктория имеет статус отдельного удаленного острова и может быть активирован для целей мирового IOTA-сообщества. После активации по новым правилам IOTA будут также засчитаны и предыдущие активности с острова.

В настоящее время остров Виктория остается последним IOTA NEW ONE в России. При этом в мире осталось только 2 неактивированных острова из числа 11 новых островных групп, добавленных в 2014 году на конференции в Великобритании, приуроченной к 50-летию международной программы IOTA. Команда RI1F планирует в конце сентября – начале октября провести экспедицию на морской яхте и представить в эфире остров Виктория для мирового радиолюбительского сообщества.


VIKTORIYA ISLAND



Viktoriya Island – the desert Arctic island in the Barents Sea located between the archipelagoes of Franz Josef Land and Spitsbergen. Viktoriya Island is at distance about 60 km to the East from the Norwegian island White and approximately in 160 km to the West from Mary Hemsuort's Cape on Aleksandra's (FJL) Earth, island coordinates – 80 °05-12'N/36 °30 ’-37 °10’E. Administratively Viktoriya Island is a part of Primorsky district of the Arkhangelsk region of the Russian Federation and is the most northwest Russian territory. Island length is about 5 km, width is 2,5 km. Viktoriya Island – is one of the "islands - ice caps", the most part of its territory occupies a glacial dome up to 150 m high.

The island was opened on July 20, 1898 by the Norwegian captains Johannes Nilsen and Ludvig Bernard Sebulonsen. Next day the island was noticed by P. V. Nielsen, the captain of the steam yacht "Victoria", it is called in honor of the vessel whose owner was the British traveler Arnold Payk. As the island layed outside of the polar Norway boundaries fixed by the contract about Spitsbergen of 1920 it was considered as the neutral earth until the USSR declared the rights for it and for Franz Josef Land by the Resolution of Presidium of the Central Election Commission of the USSR of April 15, 1926 which officially established borders of polar possession of the USSR. In September, 1932, after the 6-year territorial dispute with Norway, the island was recognized as the territory of the USSR and included in structure of RSFSR. Since November 1, 1959 the polar station "Viktoriya Island" operated on the island. It was served by several employees. On April 1, 1994 the station was preserved. Since 1985 prior to the beginning of the 90th the radar station of troops of air defense was placed on the island. There are rookeries of walruses on Viktoriya, polar bears and from birds - a white seagull. It was planned that the island will be a part of national park "Russian Arctic" (FJL), but as a result it wasn't included.

Geographically Viktoriya Island isn't a part of the Franz Josef Land Archipelago, but in radio amateur aspect according to the DXCC program Viktoriya island counts as the "country" (entity) – FRANZ JOSEF LAND (FJL). In 1985-1990 UA1O/UA0BCA was active from the island, who later in 1991-1994 used the 4K2BCA callsign. Within the last months of the station functioning the R1FJV callsign was used. In April, 1994 the polar station "Viktoriya Island" was closed, and employees were evacuated on FJL. Since then Viktoriya Island keeps radio silence on the air.

The first interest to Viktoriya Island as to the separate island for the IOTA program belongs to the end of the 1980th. The new expanded list of the Russian islands for IOTA was forming at that time in which the basin principle of reference of islands to the seas extended depending on territorial and administrative belonging of islands to the Russian regions was formed. Despite quite significant total area of the island (about 10,8 sq.km) on many popular maps the island wasn't displayed.

On various maps where the island was designated, distance to the next Russian land (Mary Hemsuort's cape on the lake Aleksandra's Earth in the arch. Franz Josef Land) strongly differed and wasn't exact. The analysis of sea charts didn't allow to be convinced unambiguously that removal from Viktoriya Island from the other island is not less than 100 statute miles that makes ~160 km. Even in the official reply of Head Department of Navigation and Oceanography two different options of calculation appeared – in rectangular and spherical coordinates different values turned out. If the distance was specified in one system of geographical coordinates over 160 km, then in another made about 159 km that didn't allow allocating Viktoriya to the certain remote island by the IOTA rules. Several hundred meters weren't enough literally. It were the long and careful researches conducted by G3KMA and UA9OBA.

Only in 2014 when the IOTA rules were changed and the minimum distance in 150 km (E5.3 point) was established, according to the application of Russian Robinson Club two new groups were added to the world list of groups of islands: in the Asian part - AS-203 (Shelikhova Bay Group), and in the European part – EU-190 (Viktoriya Island). Thus, now Viktoriya Island has the status of the certain remote island and can be activated for the world IOTA community. After activation by the new rules IOTA also the previous activities from the island will also be counted.

Now Viktoriya Island remains the last IOTA NEW ONE in Russia. At the same time in the world remained only two never activated islands remain from the 11 of the new island groups added in 2014 at a conference in Great Britain dated for the 50 anniversary of the international IOTA program. The RI1F team plans at the end of September – the beginning of October to conduct an expedition on the sea yacht and to present Viktoriya Island on the air for the IOTA/DX world radio amateur community.


RI1F expedition team:

Igor Znamensky UA9KDF Team leader
Daniel Gavrilov Captain RUSARC AURORA
Yury Zaruba UA9OBA RRC president
Vladimir Kostin Chief mate RUSARC AURORA
Andrey Korobejnikov UA9LDD CW operator
Yury Rybov UA9LDW CW operator
Valery Makarov UA0ZC CW/SSB operator
Vladimir Vasil'yev R9LR SSB/CW operator
Sergey Nadtochiy UA9KB CW operator
Artemy Rusin UA9KAM Photo, video, SSB op.
Andrey Semeshko RT9K Mechanic, cook, SSB op.
Victor Kuzyakin RW0BG CW/SSB operator
Mikhail Kutyumov UA1QV CW/SSB operator
Valery Nesterov RA9J CW/SSB operator
Vladimir Korobeinikov Son of UA9LDD CW/SSB operator

Support Group

RA3CQ      Igor Ustimenko pilot
DL8RCB   Anatoli Vilessov APRS support
RX9KM    Alexandr Kovalevsky QSL manager
W7/UA6JD Vlad Lambrianov QRZdesign/web support

Igor Kuznetsov     Information support  , Headquarters of the regional branch of the Russian Geographical Society in the Yamalo-Nenets Autonomous District

Click to any picture for enlarge


Transceivers:

  1.  TS-590 - 2 pcs with interfaces
  2.  ICOM IC-706MK2G 1 pcs with interfaces
  3.  Elecraft K3 - 1 pcs
  4.  FT-857 - 1 pcs (spare)
  5.  MB1 Expert Electronics HF 6m and 2m SDR transceiver  -1 pcs

Amplifiers: Expert 1,3K-FA (1,5 kW peak, 9 kg) - 4 pcs

Antennas:


Vertical 17 m. tall with tuner for 80-160 m,

RX beverages for 3 directions,

6 el yagi for 20-10 m (including WARC) DXer-206 on 12m tall masts - 2 pcs,

Inverted «V» for 30-40m - 2 pcs,

Inverted  «V» for 80-160m - 1pcs,


SteppIR BigIR+80m coil - 1 pcs


Spiderbeam 20-17-15-12-10m - 1pcs


HDDelta Loop for 80-10 m - 1 pcs


Coax cable 50m - 8 pcs

Power:

Generator YAMAHA 2,8 kW petrol - 2 pcs
Generator 6,5 kW diesel - 1 pcs

Computers, photo, video, GoPro cameras, waterproof cases - a lot

Camera drone, Spot Gen 3 tracker, IRIDIUM Exstrim, P4dragon DR-7400, DSP-TNC HF tracker, guns

April 25, 2017 .  Lease of the yacht (25000 euros) is completely paid.
Exit in the sea time agreed.
It's September 27 from Murmansk.
The new diesel generator 6,5 kW is acquired.
We begin to go in for logistics and transfer of all the equipment to Murmansk.
R9LR plans to take VHF EME set with him for tropo and moon operation from the island as the October 4-5-6 should be good for it.
Bevereges (160-80) for three directions are prepared.
April 27, 2017.  The first 300 kg of expedition equipment were sent to Murmansk  today.
  May 18, 2017 . Three days ago the AURORA yacht left dock, prepared for our campaign and further for a global cruise. Now the yacht already left in a campaign and is in Helsinki. The photos of the updated AURORA are avaliable in the photo folder.

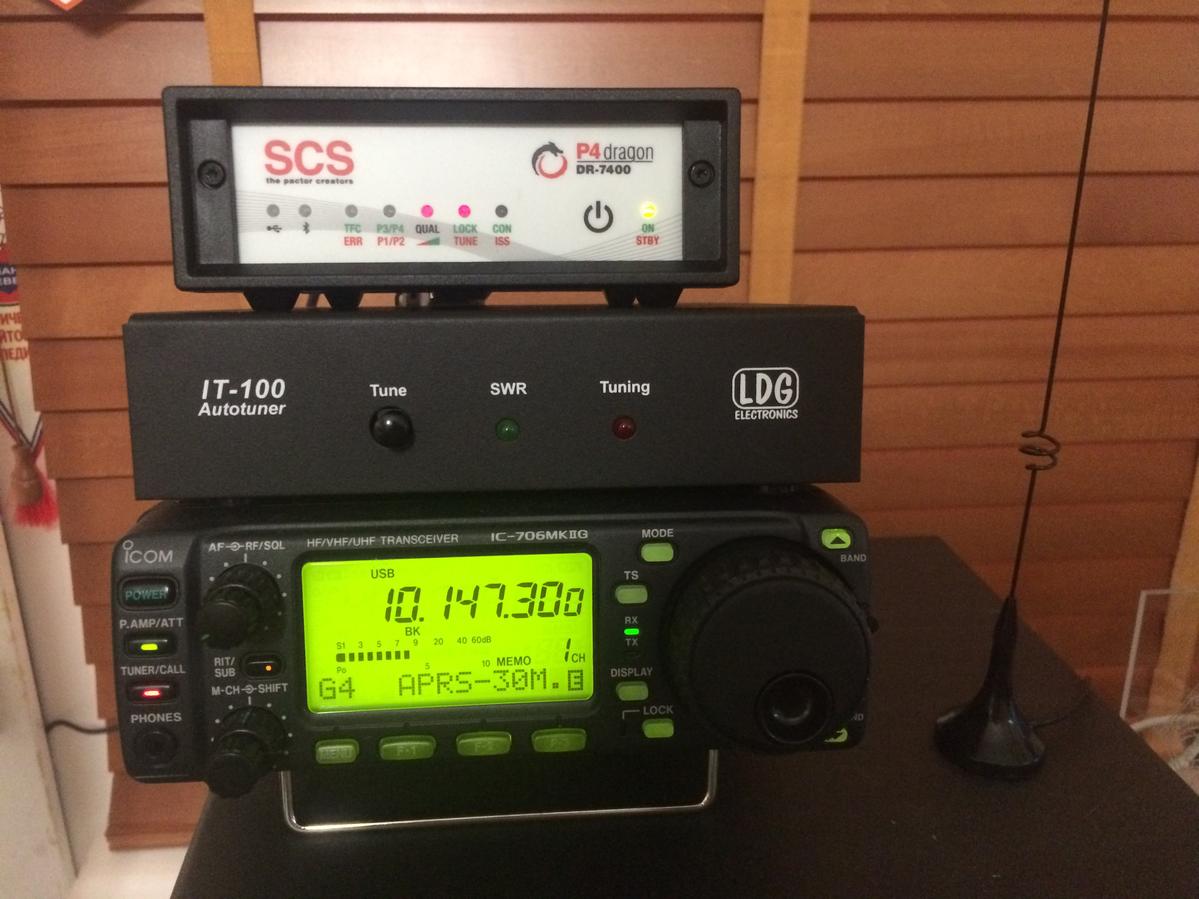

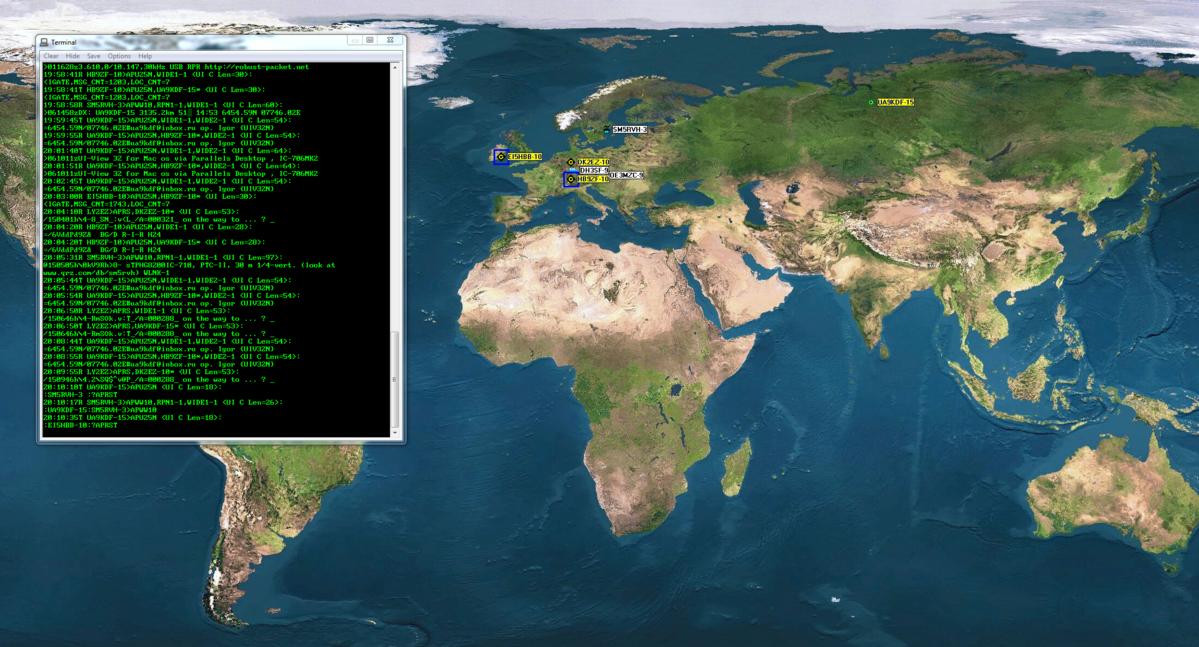

  June 06, 2017 . Today we've tried the APRS setup on 30m. Everything went fine and Europe could connect easily.
The satellite tracker can't see the satellites in those latitudes so the tracker is useless. The only one hope is for HF.


June 15, 2017 The passes for the visit of the border area have been granted by FSB of Russia.

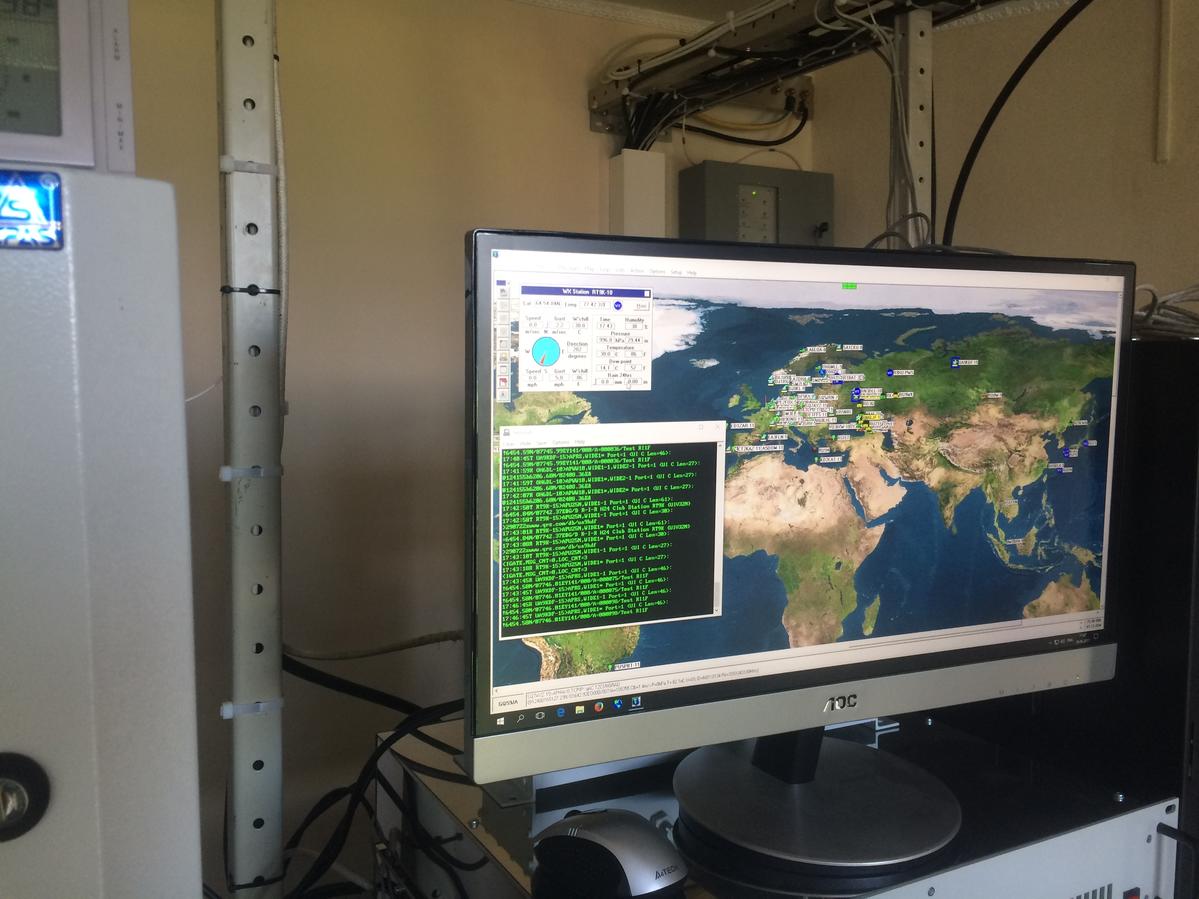

June 29, 2017 The APRS Robust packet Digipeater RT9K-15 has started to operate on 10147.3 using the Internet gate. It is oriented on the support of our movement in the Arctic waters.

July 06, 2017 The design of the plaquette is made, the conditions of implementation will be later.

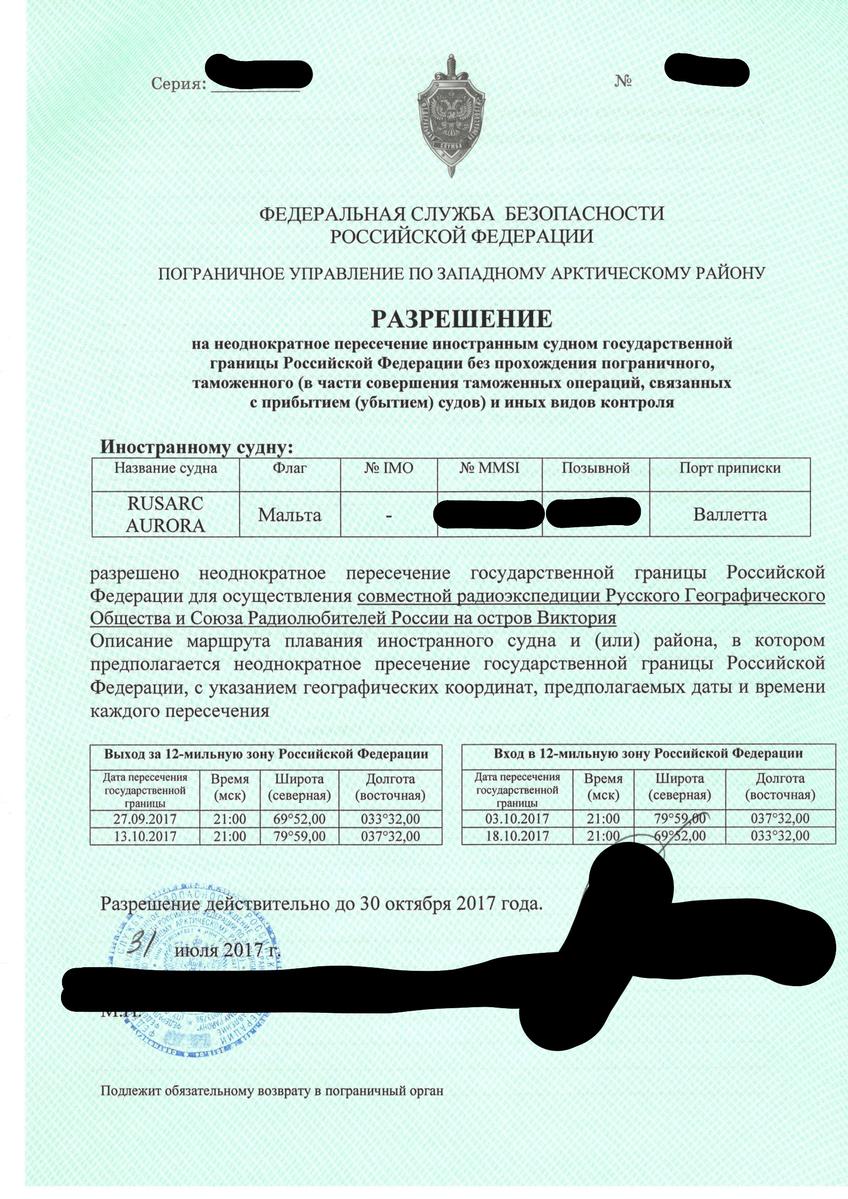

August 02, 2017 Permission for our yacht for multiple crossing of the Russian Federation frontier without passing of customs and border control has just been received from the FSB.


 August 09, 2017 All RI1F team members have already got their tickets and will get together in one crew in Murmansk on September, 24-th.

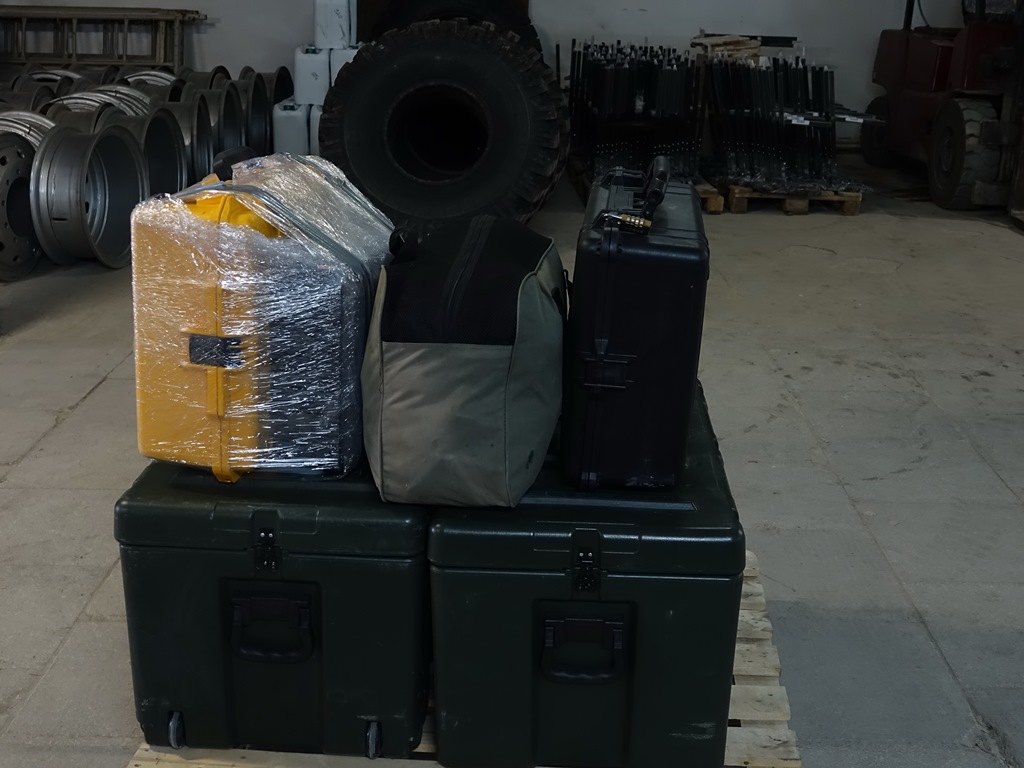

August 11, 2017 Today the second batch of expedition equipment RI1F went to Murmansk, it turned out 842 kg. 5 cubic meters.


August 16, 2017

Наградой за работу с EU-190 является доска "Виктория".
Выдается установившим связи с островом на любых 7 из 11 диапазонов, включая УКВ (1,8-3,5-7-10-14-18-21-24-28-144-430 мГц).
Вне зависимости от вида излучения.
Плакетка соискателям выдается бесплатно.

The Award for QSOs with EU-190 is the "Victoria" plaque.
It is given for the QSOs with the Island on any 7 of 11 bands including VHF (1,8-3,5-7-10-14-18-21-24-28-144-430 mHz) regardless of mode (in any mode - CW, SSB, DIGI).
The plaque is free of charge.

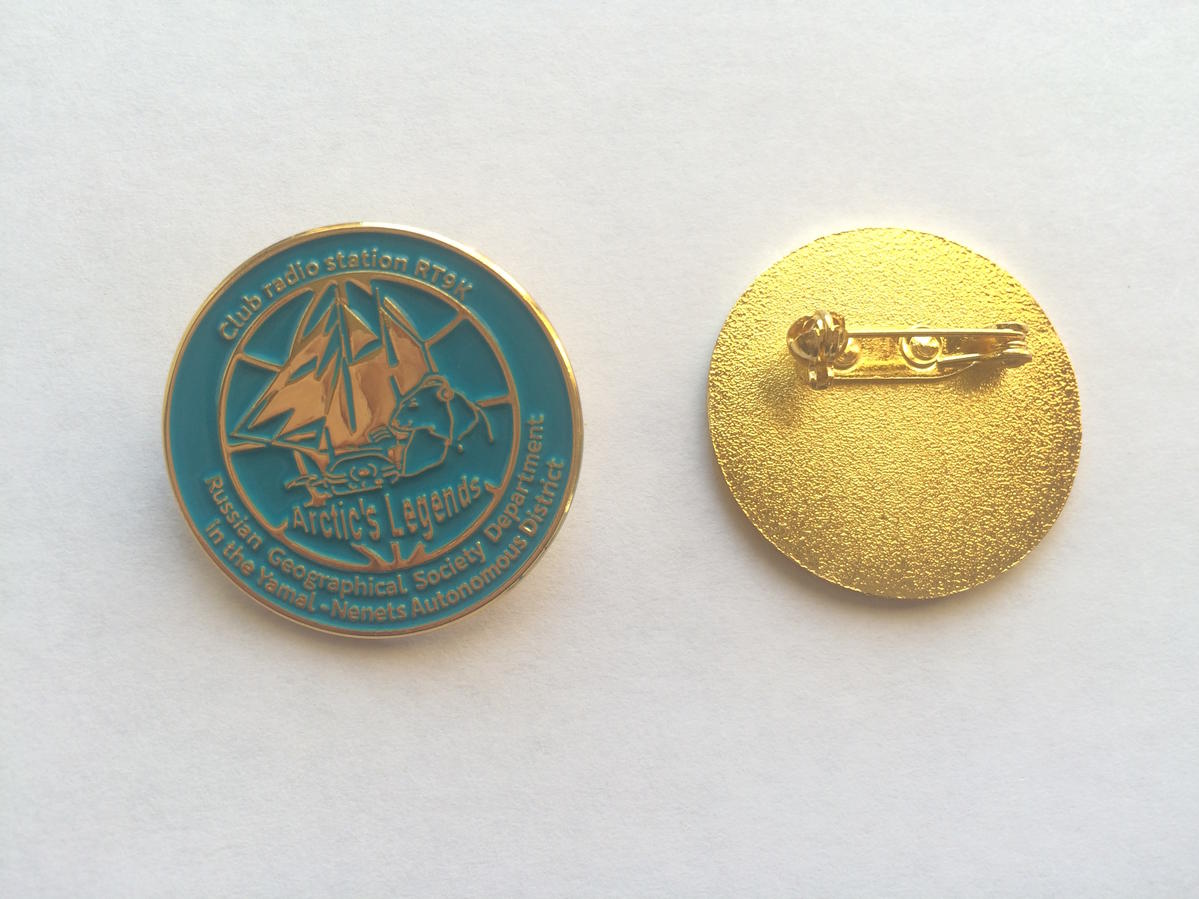

August 17, 2017 Badges of our "Expedition Center" Club Radio Station  RT9K


August 21, 2017

1 место- EME работа три дня- 4-7 октября 2017г.

Антенны- 2 по 8 эл H/V I0JXX -8*8JXX2, сумматоры homemade + реле H/V-2 комплекта

Редуктор- G5500 и  интерфейс RQUAD

Трансивер-IC-910+ UNICOMMDUAL-V4+LHA-SHF-Elektronik (HP-MVV-144 & MVV 144-VOX)

Резерв- FT-897 & MB-1 от ExpertElectronics (https://eesdr.com) с КВ рабочего места.

PA- I0JXX-1кВт, резерв- TOKYO -400 ватт. Блоки питания- MEANWELLSE-450 и SE-1000

Soft- WSJT +MHSV (SWL)



2-е место SAT, tropo, MS, AU?-  развертывание по прибытию на остров Виктория и до окончания экспедиции.

Антенны MASPRO-WH- 144 мГц 12 эл,  432 мГц-20 эл

Второй редуктор- G5500,  интерфейс  RQUAD+лэптоп AsusEee

Трансивер-IC-910+ UNICOMMDUAL-V4

Soft- ORBITRON

Блок питания- MEAN WELL SE-350

GPS синхронизация времени. Советы и предложения на почту- R9LR@mail.ru

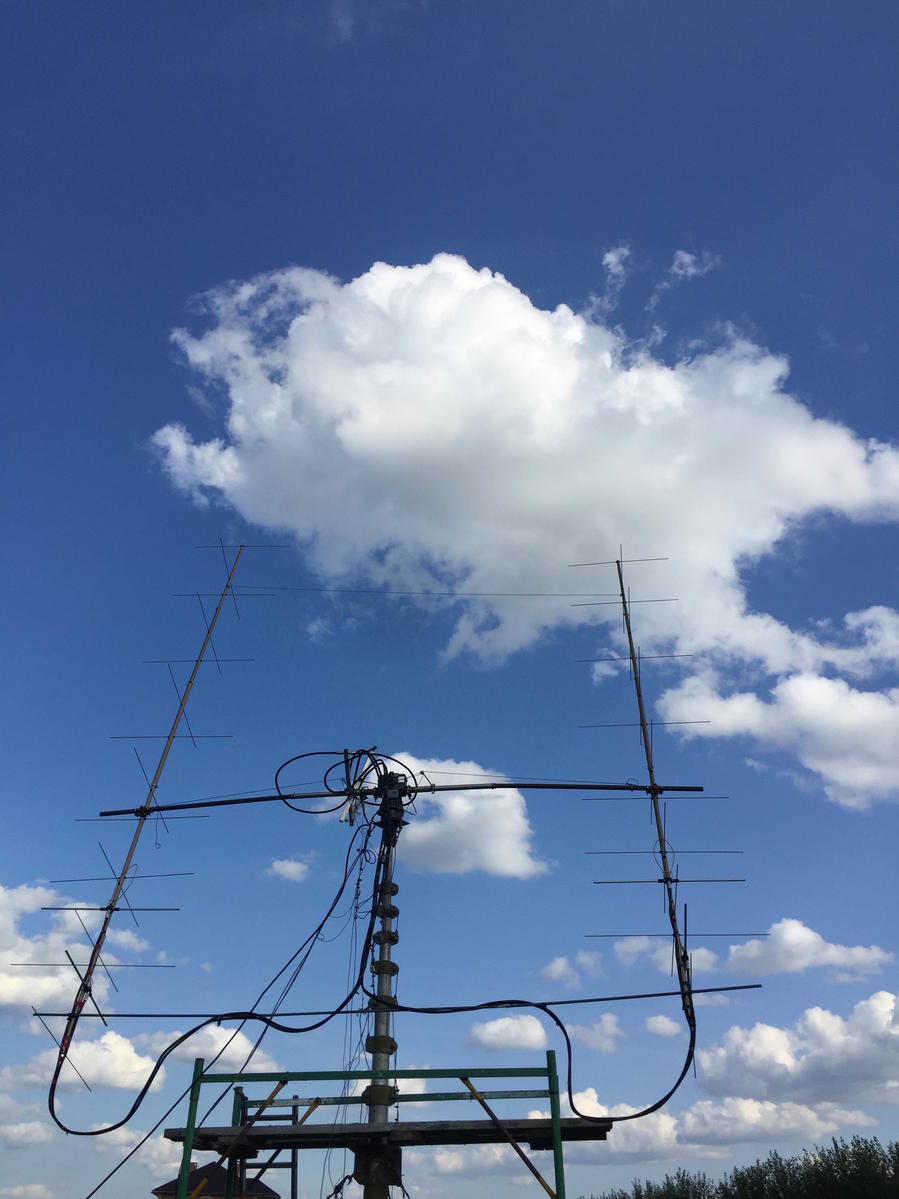

1-st site - EME operation for 3 days - Oct, 4-7-th 2017

Antannas: 2 x 8 el H/V I0JXX - 8*8JXX2, homemade combiners + H/V-2 relays.

Rotator: G-5500 + R-QUAD interface

Transceiver: IC-910 + UNICOMMDUAL-V4+LHA-SHF-Elektronik (HP-MVV-144 & MVV 144-VOX)

Spare transceiver: FT-897 & MB-1 by ExpertElectronics (https://eesdr.com) at HF operation site

Ampliier: I0JXX - 1кВт, spare PA - TOKYO - 400 W. Power supplies - MEANWELLSE-450 и SE-1000

Software: WSJT +MHSV (SWL)



2-nd site:  SAT, tropo, MS, AU?- from the beginning till the end of the expedition.

Antennas: MASPRO-WH- 144 мГц 12 el,  432 мГц - 20 el

Rotator: G-5500 + R-QUAD inteface + AsusEee laptop

Transceiver: IC-910 + UNICOMMDUAL-V4

Software: ORBITRON

Power supply: MEAN WELL SE-350

GPS time synchronization. Offers and advises to: R9LR@mail.ru




August 23, 2017 Expedition cargo of the team RI1F arrived in Murmansk.


August 31, 2017 Team changes - two sailors and the cook left. One more operator Yury Ryabov (UA9LDW) added.


September 5, 2017  The expedition had another partner, the Russian company, the manufacturer of equipment for various climate NOVATEX. The company provided us with four GRAYLING costumes for a test in the Arctic climate, a jacket plus trousers PANCHAT AUTUMN NEW and SKAT AUTUMN. The first fitting provokes positive sensations from the quality of the material. Comfortable costumes with thought over trifles. In the report of the expedition we will necessarily give detailed information about this brand of clothing.


September 5, 2017 The last portion of HF equipment, clothes and other junk has been sent to Murmansk. Elecraft K3 transceiver, RIG Expert interface, AA-170 SWR meter, power supplies, IC-706MKIIG transceiver, Expert 1,3KF amplifier, two MB1 SDR transceivers and MCHF QRP transceiver will be delivered to Murmansk by UA9LDD in his luggage. VHF/UHF equipment will be sent by Vladimir R9LR on Sept, 8-th 2017.


September 13, 2017   Ice from the island of Viktoria finally left.


September 16, 2017 The cargo sent to Murmansk on September 5 arrived at the place of destination.

September 25, 2017 The team members have arrived to Murmansk. Team is now complete and we are expecting the yacht. All is going on according to a plan.


  Link to the presentation of the expedition RI1F
September 28, 2017 While waiting for the yacht in Murmansk visited the nuclear icebreaker "Lenin"

October 18, 2017  Congratulations to the outstanding masters - radio amateurs who fulfilled the conditions of the free plaque: F5II, NK1K, EA1DR, R3LA, UA9YE, RO9O, SM2OAN, UR5LCZ, F5OHS, G3RAU ,IK5PWJ, ON4CD, UA3EDQ, F6BFH, UN9L, RZ3EC.

 This is the preliminary list as the full corrected log is not yet uploaded.


October 19, 2017  Updated photos in the folder.
October 24, 2017 All RI1F paid OQRS requests and SAT QSOs are uploaded to LoTW now.

October 25, 2017 Premium plaques will be sent to all 16 radio amateur who worked RI1F on 7 bands.


October 31, 2017 Satellite QSOs are uploaded here:  Clublog  RI1F/SAT
November 2, 2017

Hi, everybody!

I hope that on following weeks we will manage to restore data from the drowned computer and we will have the full Victoria Island's expedition log.

Then it will be possible to finaly conclude ouexpedition. As for today 16 people could fulfil the conditions of our plaque (they have already been sent to your addresses).

A lot of requests are still coming from those who would like to buy it.
We are not going to sell it under any conditions as this contradicts the principles in our team.

There are many amateurs who were simply not lucky enough because of the propogation, our wrong ears, lack of time on both sides e.t.c.

Therefore we decided to organize the issue of electronic diplomas devoted to our campaig on the HAMLOG.RU in the Arctic's Legends project.

It's rules are simple:

1-st degree - 6 bands
2-nd degree - 5 bands
3-rd degree - 4 bands
At the moment Konstantin (RW3DD) is busy with designing of diplomas.  Tadeusz (RA9DZ) will place all the materials about diplomas on HAMLOG.RU as soon as the full HF-EME-SAT log is merged.

We will make an announcement when everything is ready.


November 23, 2017 Garden of stones.
